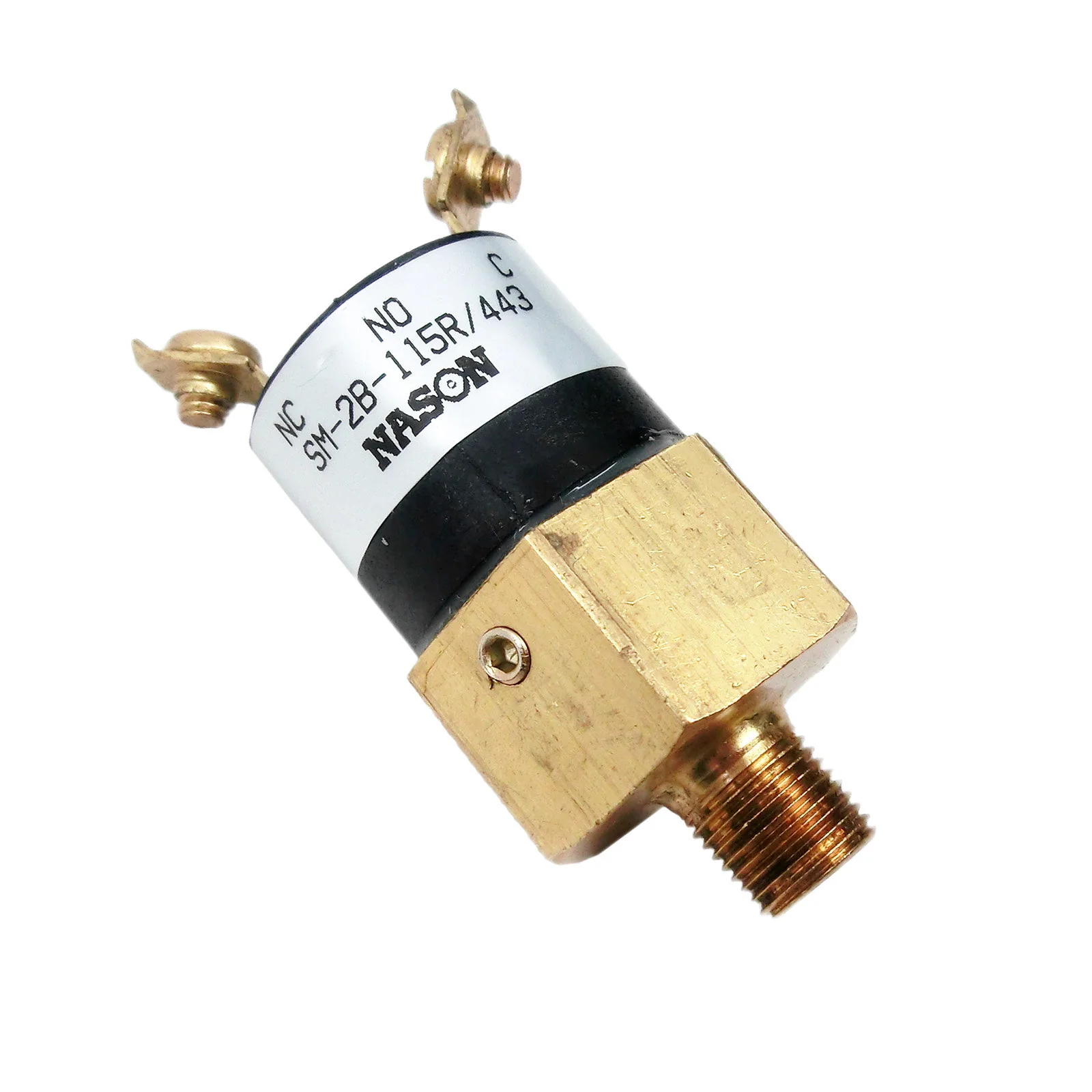

Nason Pressure Switch
This is an air pressure switch with a factory preset setting of 115-120 psi.
- Description
- This switch is able to send a signal to a robot controller, which can then tell a pneumatic compressor (air pump) to stop operating.
-
- Circuit: SPST-NC
- Current Rating: 5 A @ 30 VDC
- Cycle Life: 1 million
- Fixed set point: 115 psi
- Manufacturer: Nason
- Manufacturer Part #: SM-2B-115R/443
- Maximum Operating Pressure: 250 psi
- NEMA Rating: NEMA 4, 13

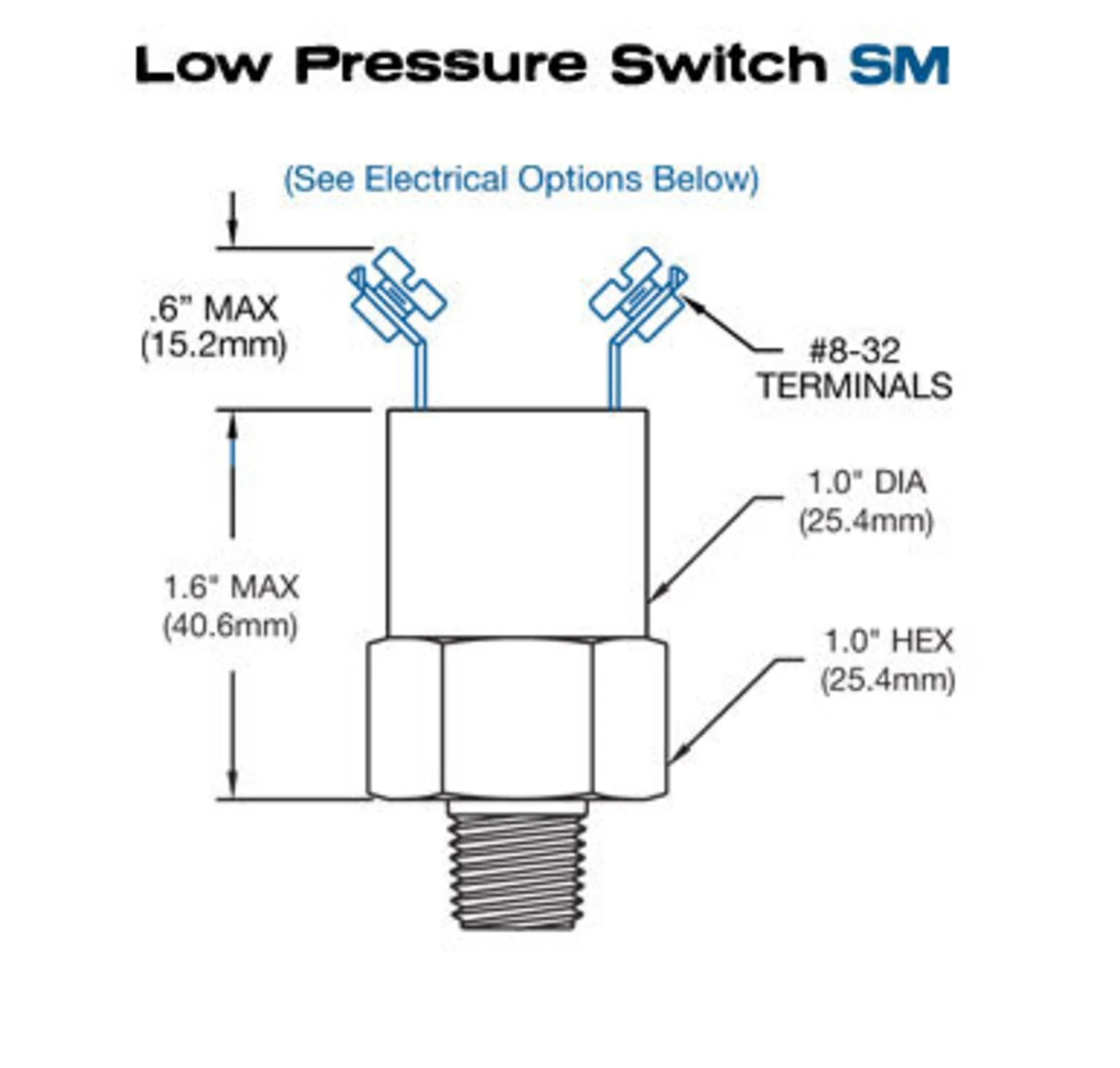

- Port(s): 1/8 in. NPT Male
- Screw Terminals: #8-32
- Set Point Direction: Rising
$50.00
Nason Pressure Switch—
$50.00
More Images
Nason Pressure Switch
This is an air pressure switch with a factory preset setting of 115-120 psi.
- Description
- This switch is able to send a signal to a robot controller, which can then tell a pneumatic compressor (air pump) to stop operating.
-
- Circuit: SPST-NC
- Current Rating: 5 A @ 30 VDC
- Cycle Life: 1 million
- Fixed set point: 115 psi
- Manufacturer: Nason
- Manufacturer Part #: SM-2B-115R/443
- Maximum Operating Pressure: 250 psi
- NEMA Rating: NEMA 4, 13
- Port(s): 1/8 in. NPT Male
- Screw Terminals: #8-32
- Set Point Direction: Rising
