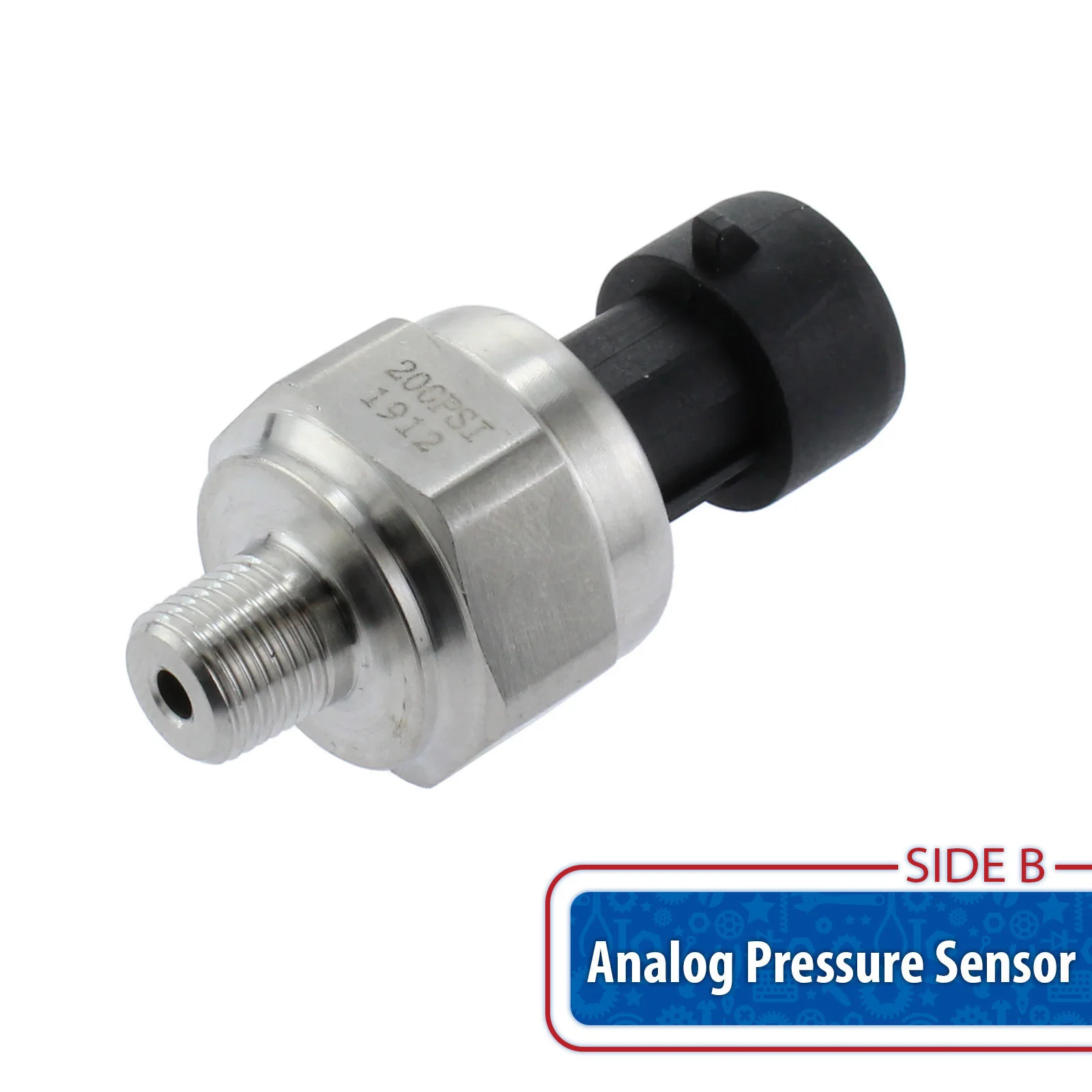

REV Analog Pressure Sensor
This Pressure Sensor outputs an analog voltage that is proportional to the measured pressure
- Description
-
. It can be plugged directly into the roboRIO and can measure up to 200 PSI.
----------------------------------------------------------------------------------------------------Warranty:
Email [email protected] and include your AndyMark order number.
View documentation for this product on the REV website.
-
- Current Draw: 10 mA
- Max Force Pressure: 348 psi
- Output Voltage: 0.5 - 4.5 VDC
- Supply Voltage: 5 VDC
- Weight: 0.9 lbs.
- Working Pressure Range: 0 - 200 psi
$29.00
REV Analog Pressure Sensor—
$29.00
More Images
REV Analog Pressure Sensor
This Pressure Sensor outputs an analog voltage that is proportional to the measured pressure
- Description
-
. It can be plugged directly into the roboRIO and can measure up to 200 PSI.
----------------------------------------------------------------------------------------------------Warranty:
Email [email protected] and include your AndyMark order number.
View documentation for this product on the REV website.
-
- Current Draw: 10 mA
- Max Force Pressure: 348 psi
- Output Voltage: 0.5 - 4.5 VDC
- Supply Voltage: 5 VDC
- Weight: 0.9 lbs.
- Working Pressure Range: 0 - 200 psi
