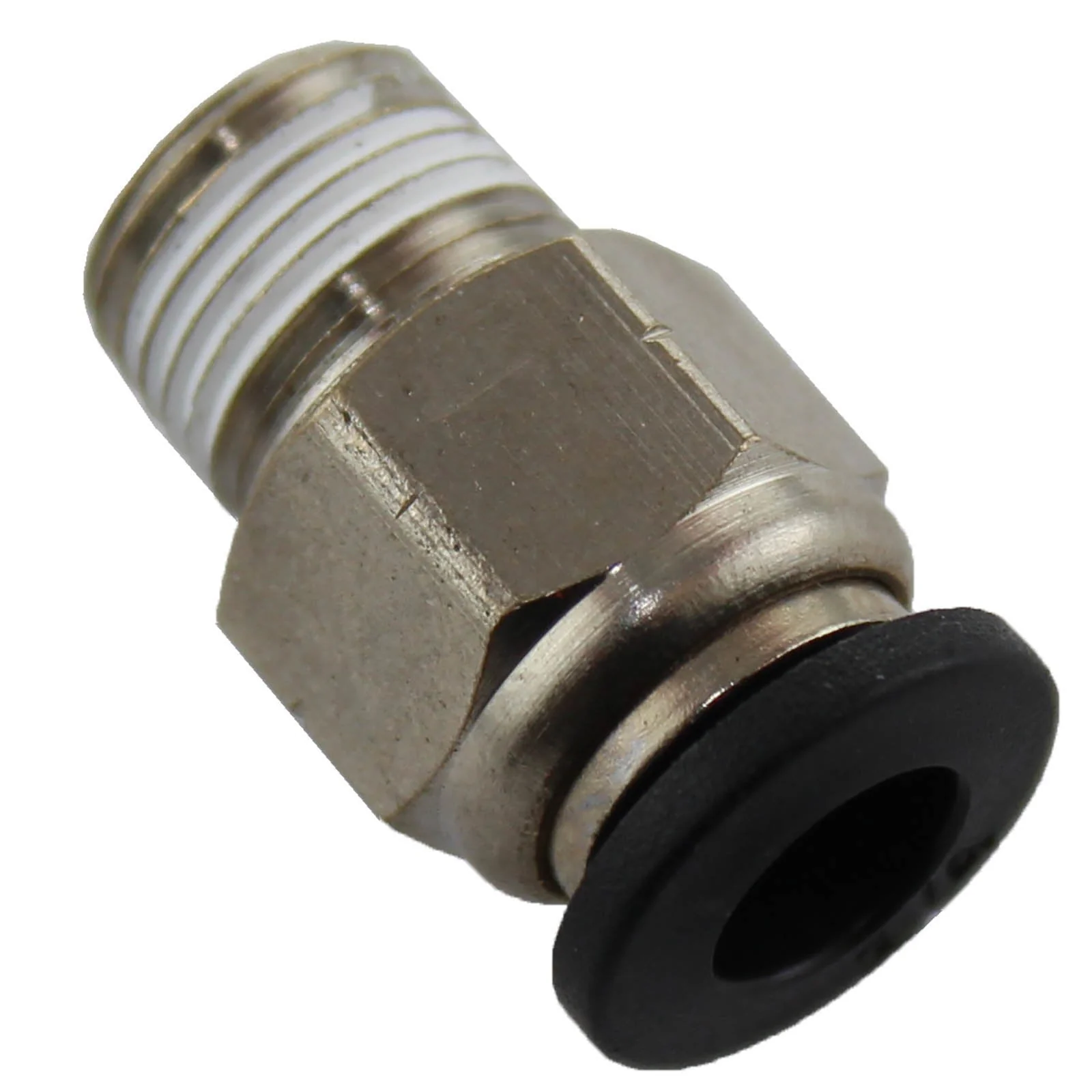

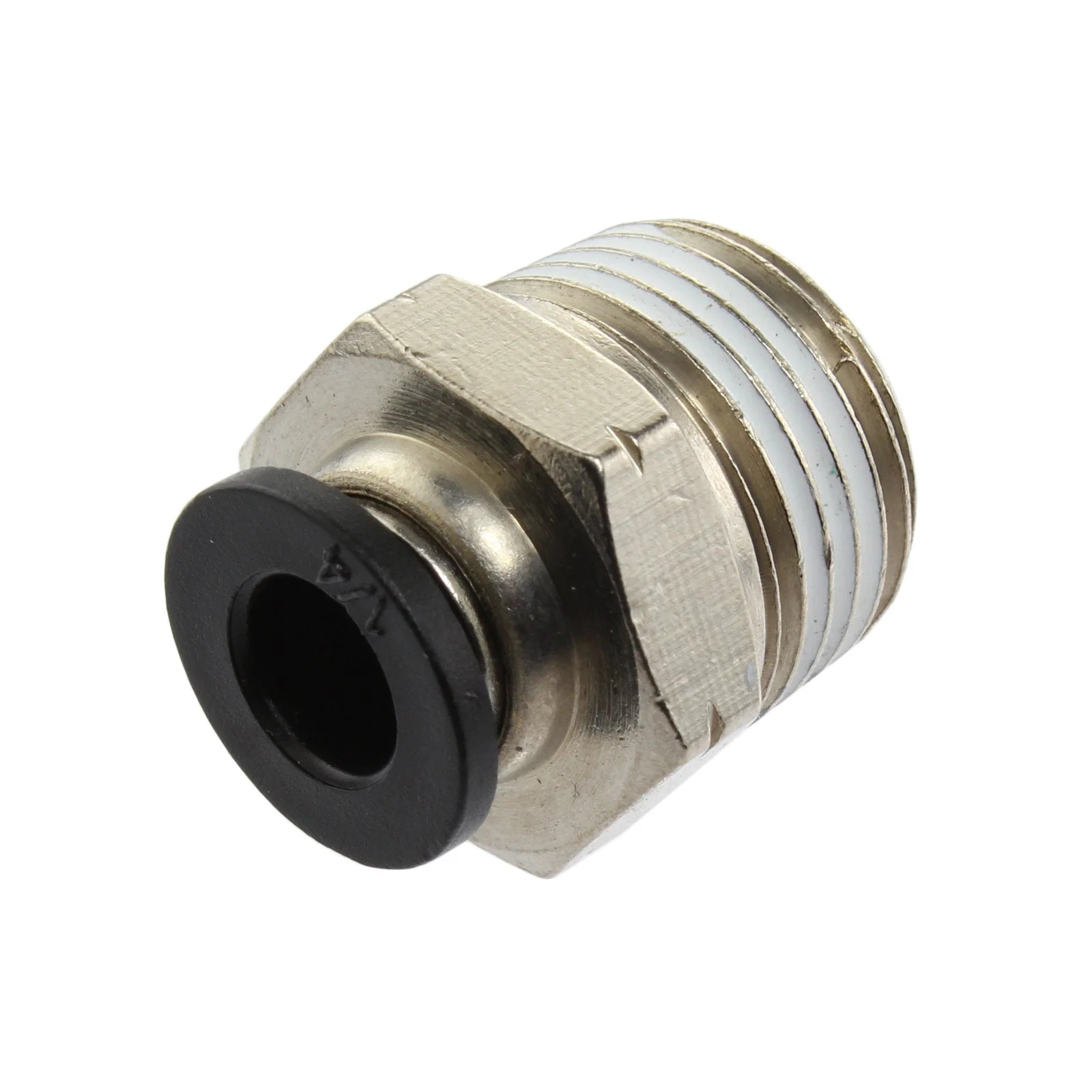

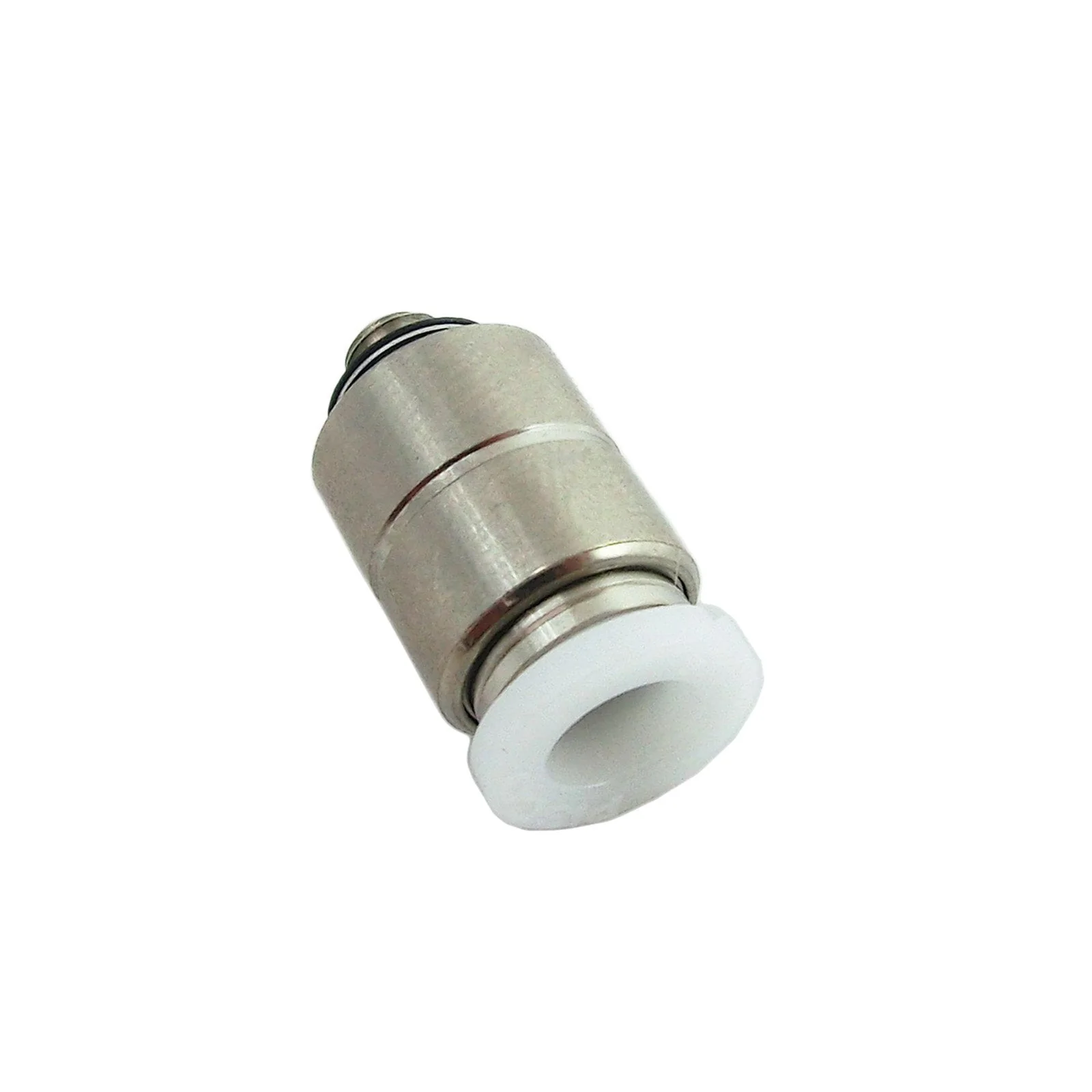

Pneumatic Fitting Straight 1/4 in. Tube to Thread
HomeStore

Pneumatic Fitting Straight 1/4 in. Tube to Thread

Pneumatic Fitting Straight 1/4 in. Tube to Thread

  • Description
  • Specifications

  • This is a pneumatic push-to-connect male straight fitting. Choose your NPT male thread, and 1/4 in. diameter tube can be pressed in to the push-to-connect fitting.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 1/2 in.
    • Material: Brass with nickel plating
    • Operating Pressure: up to 150 psi
    • Port(s): NPT male with pre-applied PTFE thread sealant
Select Thread Size
From $1.60
Pneumatic Fitting Straight 1/4 in. Tube to Thread—
$1.60

More Images

Pneumatic Fitting Straight 1/4 in. Tube to Thread - Image 2
Pneumatic Fitting Straight 1/4 in. Tube to Thread - Image 3
Pneumatic Fitting Straight 1/4 in. Tube to Thread - Image 4
Pneumatic Fitting Straight 1/4 in. Tube to Thread - Image 5

Pneumatic Fitting Straight 1/4 in. Tube to Thread

  • Description
  • Specifications

  • This is a pneumatic push-to-connect male straight fitting. Choose your NPT male thread, and 1/4 in. diameter tube can be pressed in to the push-to-connect fitting.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 1/2 in.
    • Material: Brass with nickel plating
    • Operating Pressure: up to 150 psi
    • Port(s): NPT male with pre-applied PTFE thread sealant

Product Information

Shipping & Returns

Description

  • Description
  • Specifications

  • This is a pneumatic push-to-connect male straight fitting. Choose your NPT male thread, and 1/4 in. diameter tube can be pressed in to the push-to-connect fitting.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 1/2 in.
    • Material: Brass with nickel plating
    • Operating Pressure: up to 150 psi
    • Port(s): NPT male with pre-applied PTFE thread sealant
