Flyer Gearbox Plate

Flyer Gearbox Plate

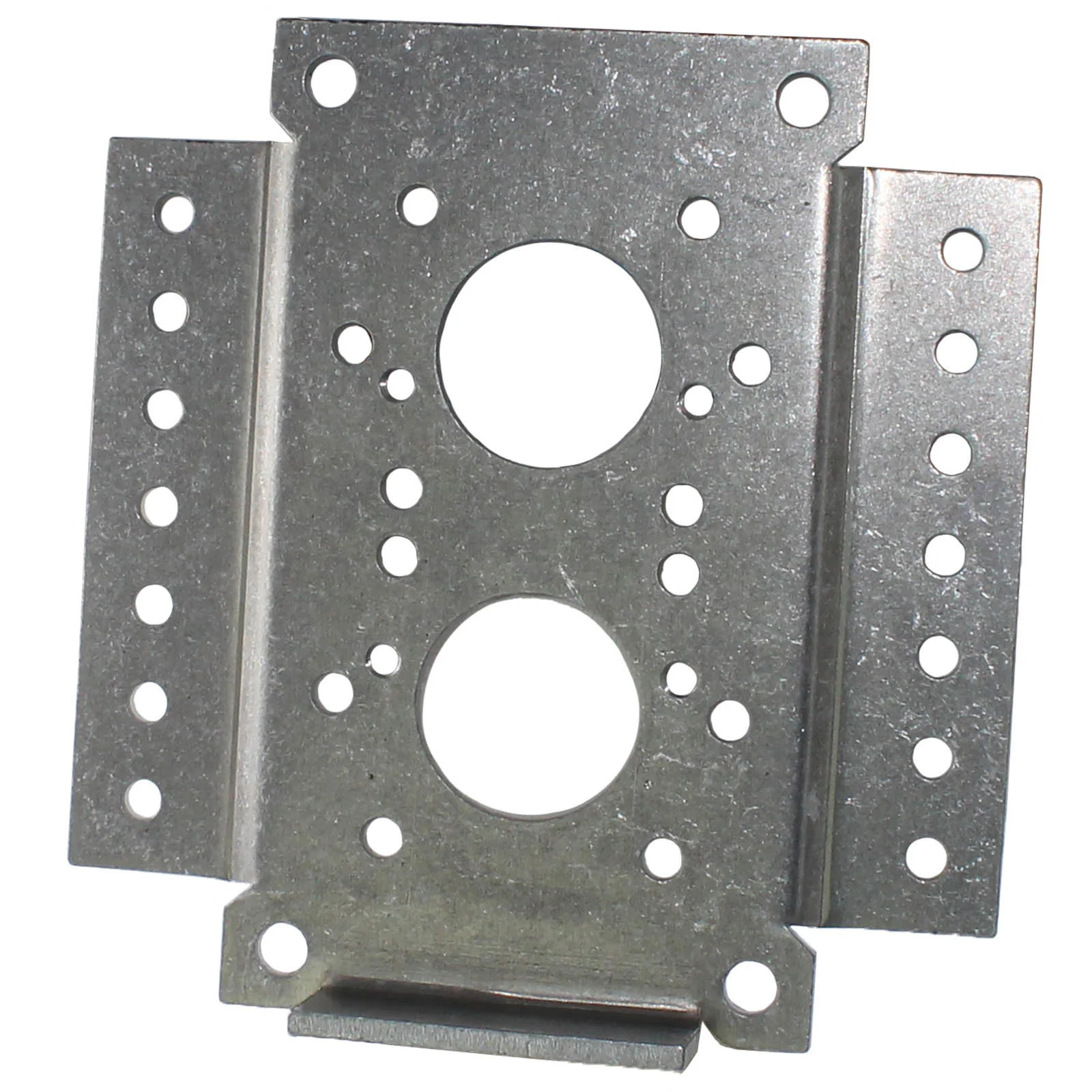

These are the outside plates for the Flyer Overdrive Gearbox.
  • Description

  • Two of these plates attached together with some spacers make the enclosure and mounting for the Flyer Overdrive Gearbox. The bearing holes in the plate are placed 1.753 inches apart for a 70 tooth 20 DP gear pair spacing.

    • Depth: 1.00 in.
    • Hegith: 5.00 in.
    • Hole Pattern: Qty 14 - 0.201 in. holes on 0.50 in. spacing
    • Material: 5052 Aluminum
    • Width: 4.75 in.
$19.00
