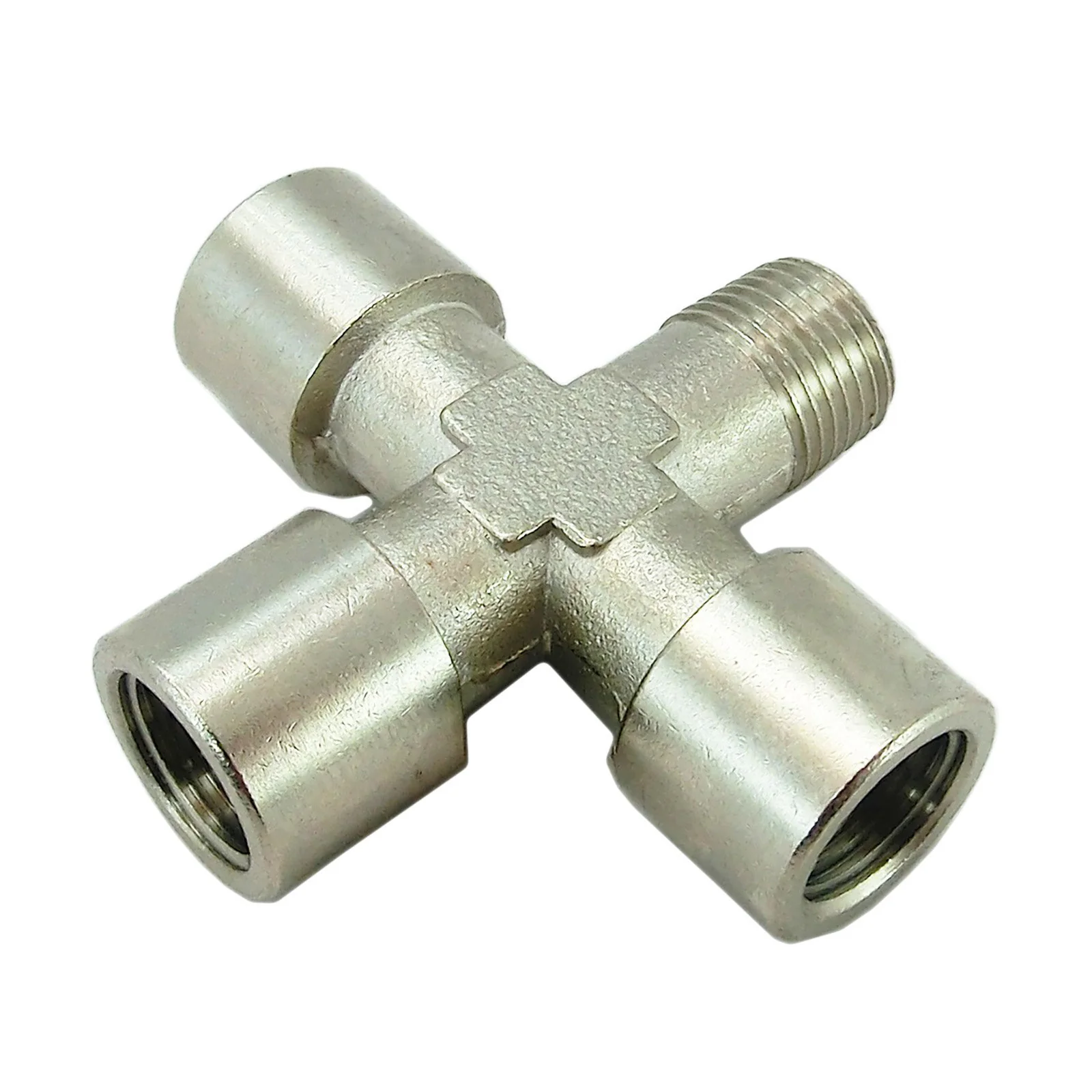

Fitting Cross Brass 1/8 in. NPT 3 F 1 M

This is a Nickel plated Brass cross union with three (3) Female connections with 1/8 NPT thread and one (1) male connection at 1/8 NPT.

• Description
• Specifications
• Documentation

• This part can replace heavier brass manifold pieces and makes your pneumatic system lighter.

  NPT THREAD Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
  Pipe Size (NPT)	1/8	1/4	3/8	1/2
  Thread Size (NPT)	1/8-27	1/4-18	3/8-18	1/2-14
  Thread Measuring Diameter	3/8 Inch	1/2 Inch	5/8 Inch	3/4 Inch

• • Depth: 1.58 in.
  • Height: 0.51 in.
  • Material: Brass with nickel plating
  • Operating Pressure: 230 psi
  • Port(s): 3 Female 1/8 in. NPT, 1 male 1/8 in. NPT
  • Weight: 0.08 lbs.
  • Width: 1.65 in.
