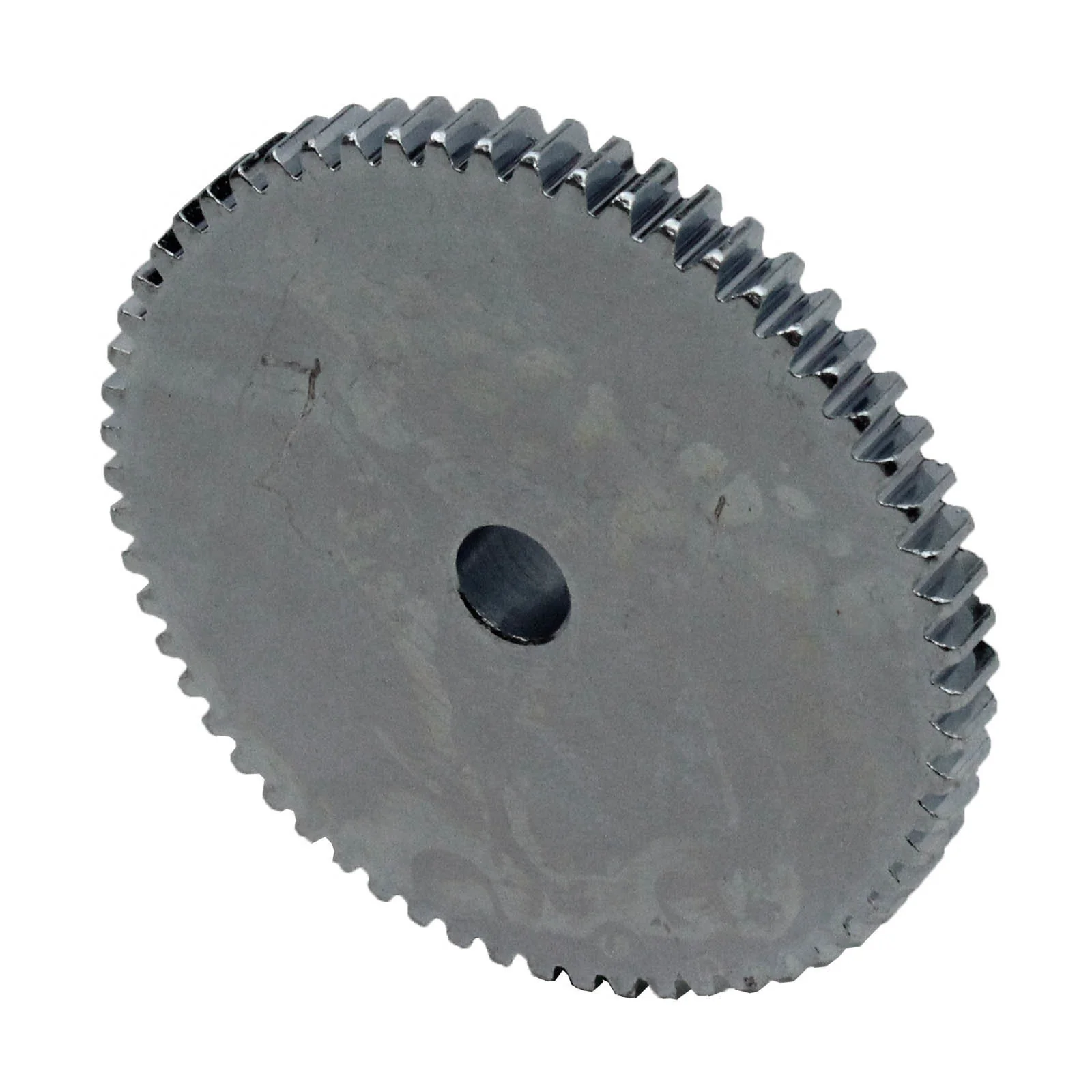

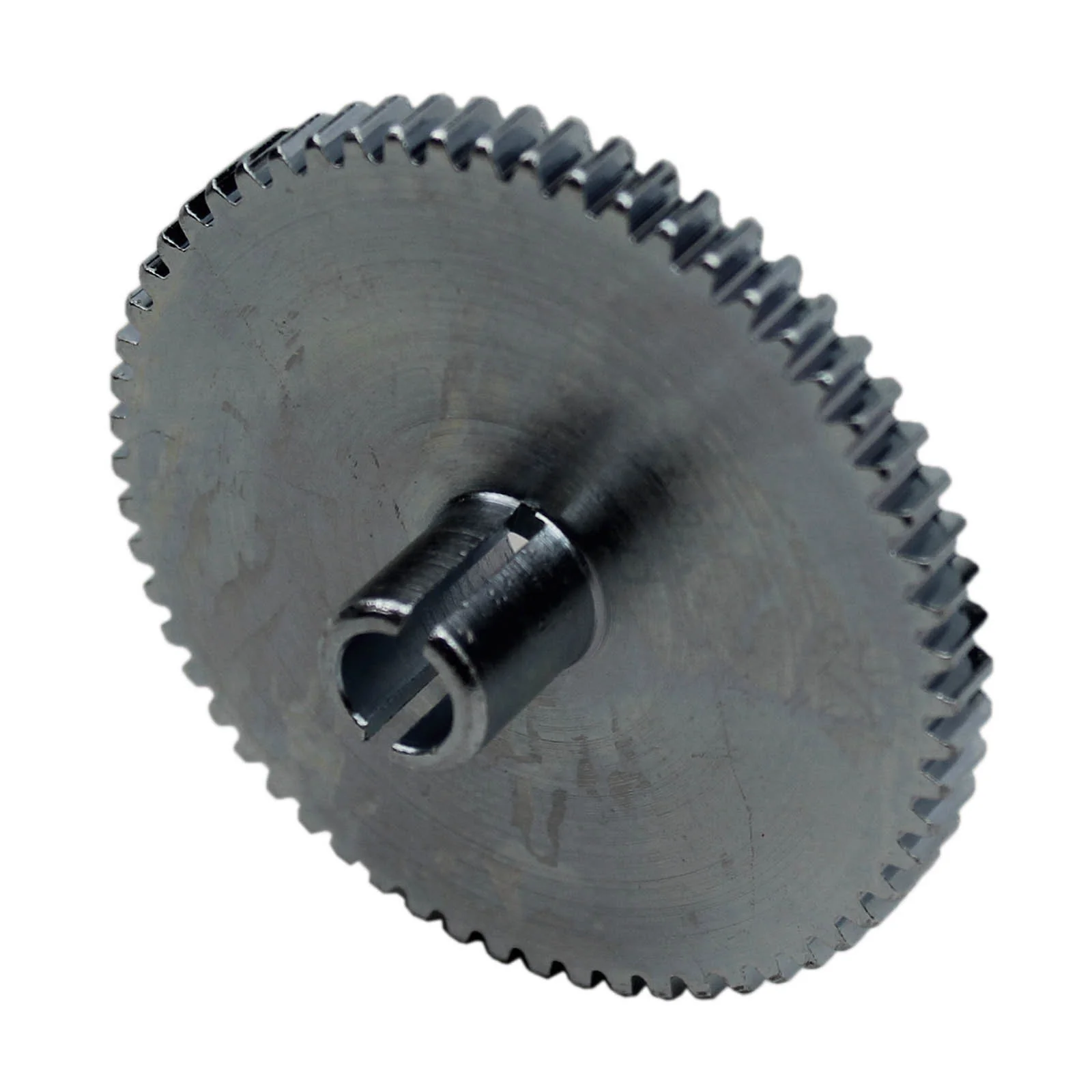

60 Tooth 32 DP 0.250 in. Round Bore Steel Gear for EVO Encoder
This 60 tooth gear is a part of the encoder setup for the 2 Stage EVO Shifters.
- Description
-
This 60 tooth gear is a part of the encoder setup for the 2 Stage EVO Shifters. It is designed to be used on a 1/4 in. diameter shaft held with a 3/8 in. collar clamp, am-2382.
-
- Bore: 0.250 in. [6.4 mm] (1/4) Round
- Diametral Pitch: 32
- Face Width: 0.188 in.
- Finish: Zinc Plated
- Material: 1117 Steel
- Pitch Diameter: 1.875 in.
- Pressure Angle: 20°
- Teeth: 60
- Weight: 0.16 lbs.
