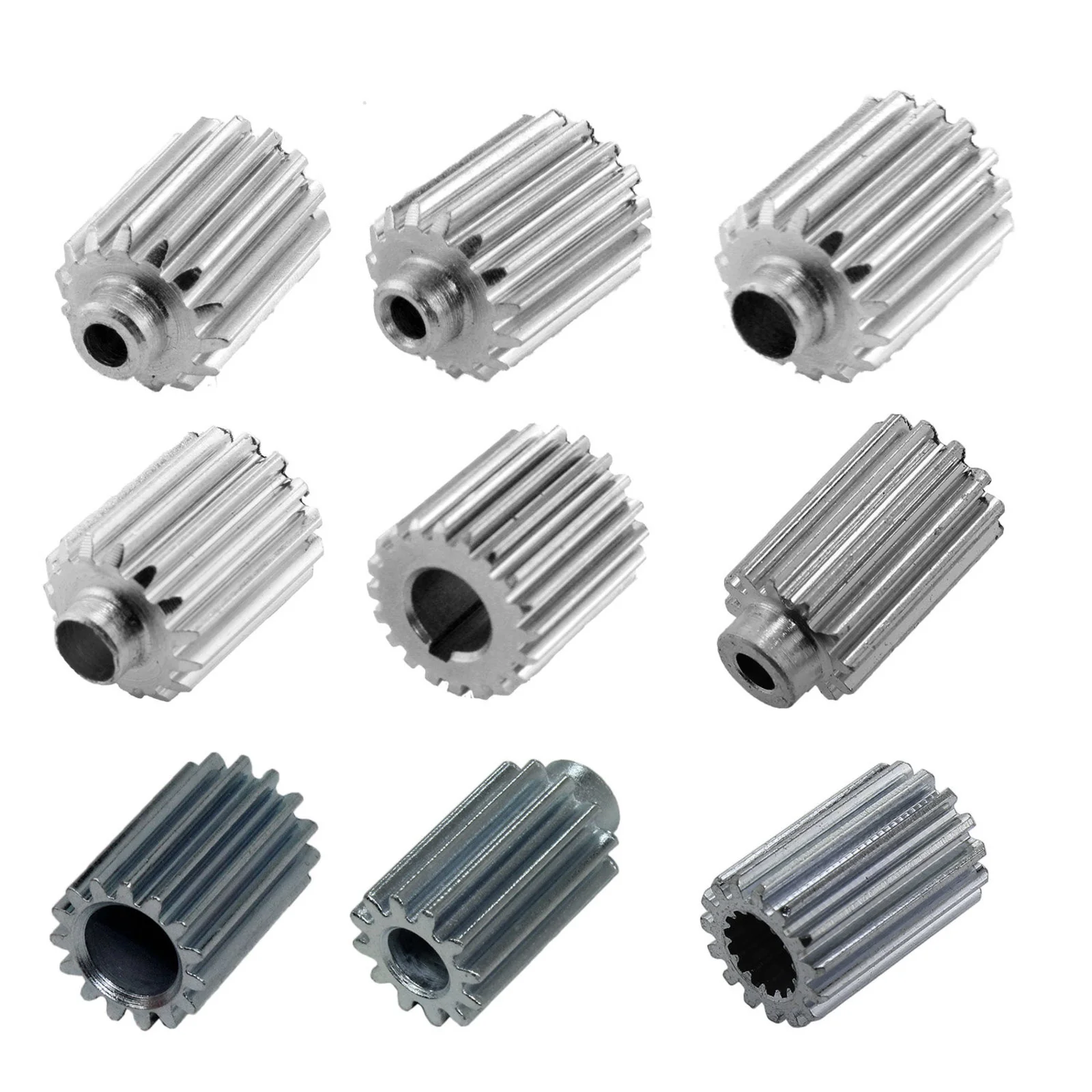

32 DP Pinion Gears

These 32DP Pinion Gears are used to transfer the rotational output from the motor to other mechanical systems.
  • Description

  • These 32DP Pinion Gears are used by installing on a motor shaft to transfer the rotational output from the motor to other mechanical systems.

    Part Number Tooth Count Bore Outside Dia (in.) Pitch Dia (in.) Weight (lbs) X (in) Y (in) Z (in)
    am-3657 12 5mm 0.438 0.375 0.01 0.44 0.44 0.75
    am-4032 12 0.125 0.438 0.375 0.01 0.44 0.44 0.75
    am-4319 14 0.125 0.500 0.438 0.02 0.50 0.50 0.75
    am-4321 14 5mm 0.500 0.438 0.02 0.50 0.50 0.75
    am-4320 15 0.125 0.531 0.469 0.02 0.53 0.53 0.75
    am-4322 15 5mm 0.531 0.469 0.02 0.53 0.53 0.75
    am-3482 15 8mm 0.531 0.469 0.02 0.53 0.53 0.80
    am-4148 15 Falcon Spline 0.531 0.469 0.03 0.53 0.53 0.75
    am-4323 20 8mm 0.688 0.625 0.04 0.69 0.69 0.75
    • Bore: 5 mm Round, 8 mm Round, Falcon Spline, 0.125 in. Round
    • Diametral Pitch: 32
    • Finish: Zinc Plated
    • Material: 4140 Steel
Select Bore
Select Tooth Count
From $3.04

Original: $8.70

-65%
32 DP Pinion Gears—

$8.70

$3.04

More Images

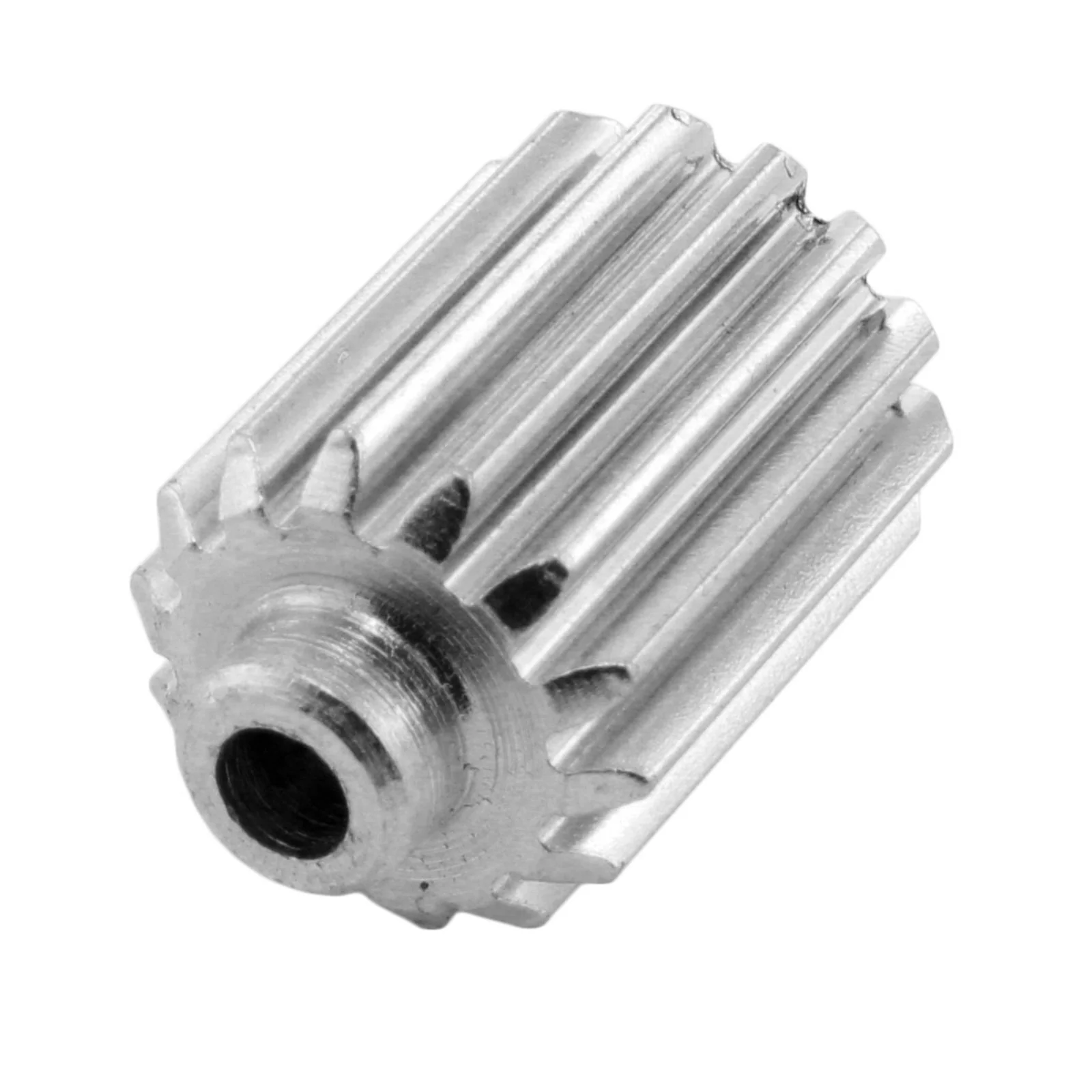

32 DP Pinion Gears - Image 2

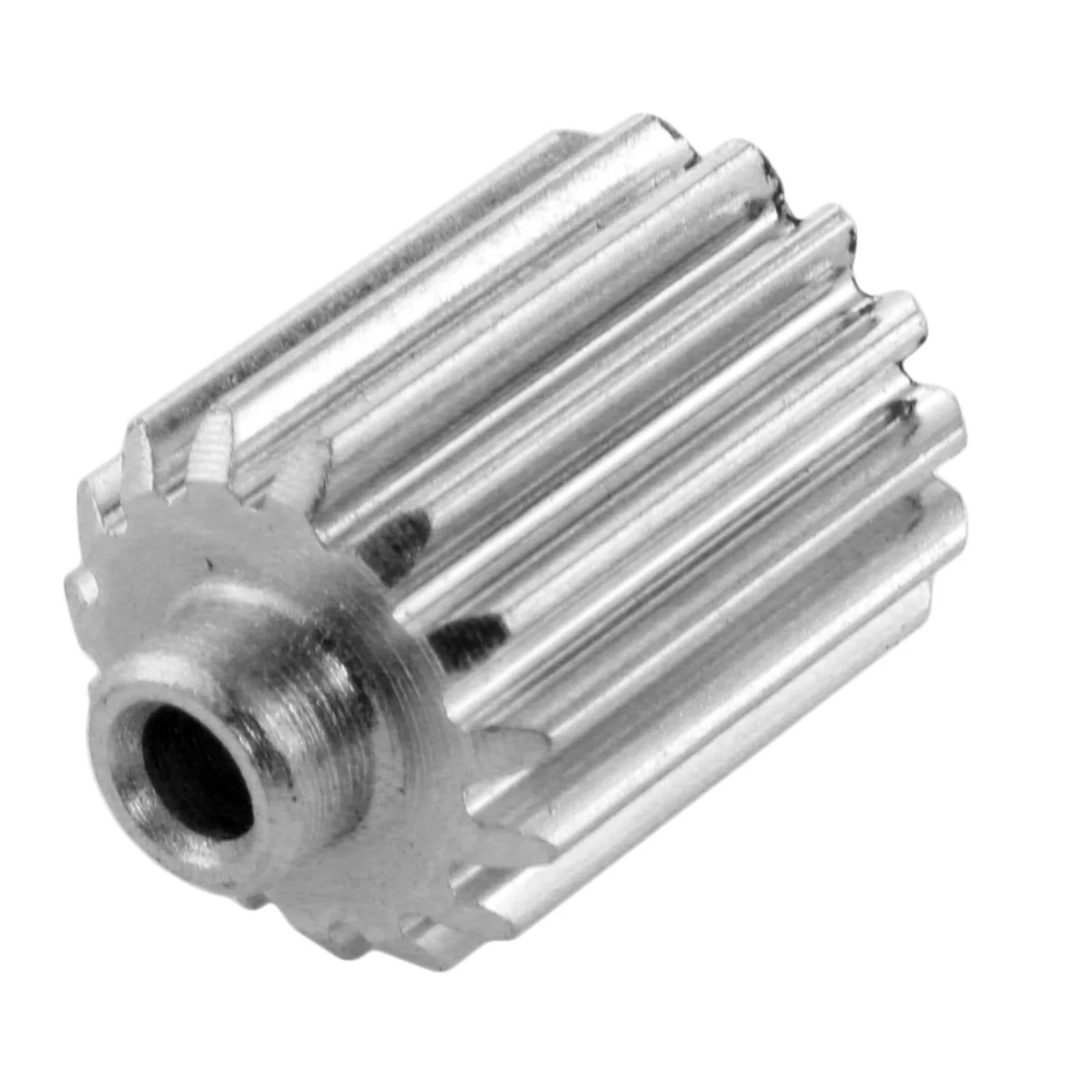

32 DP Pinion Gears - Image 3
32 DP Pinion Gears - Image 4

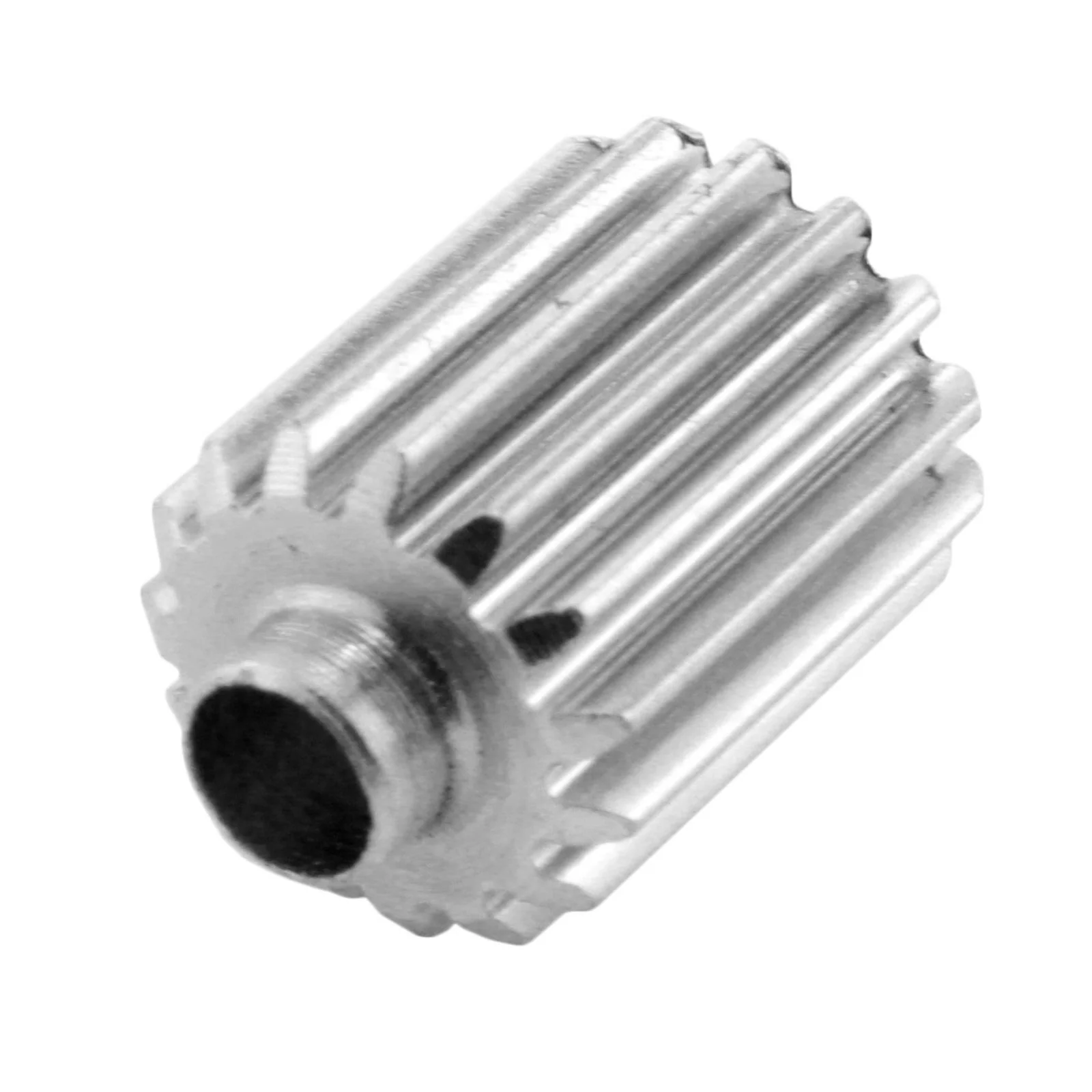

32 DP Pinion Gears - Image 5

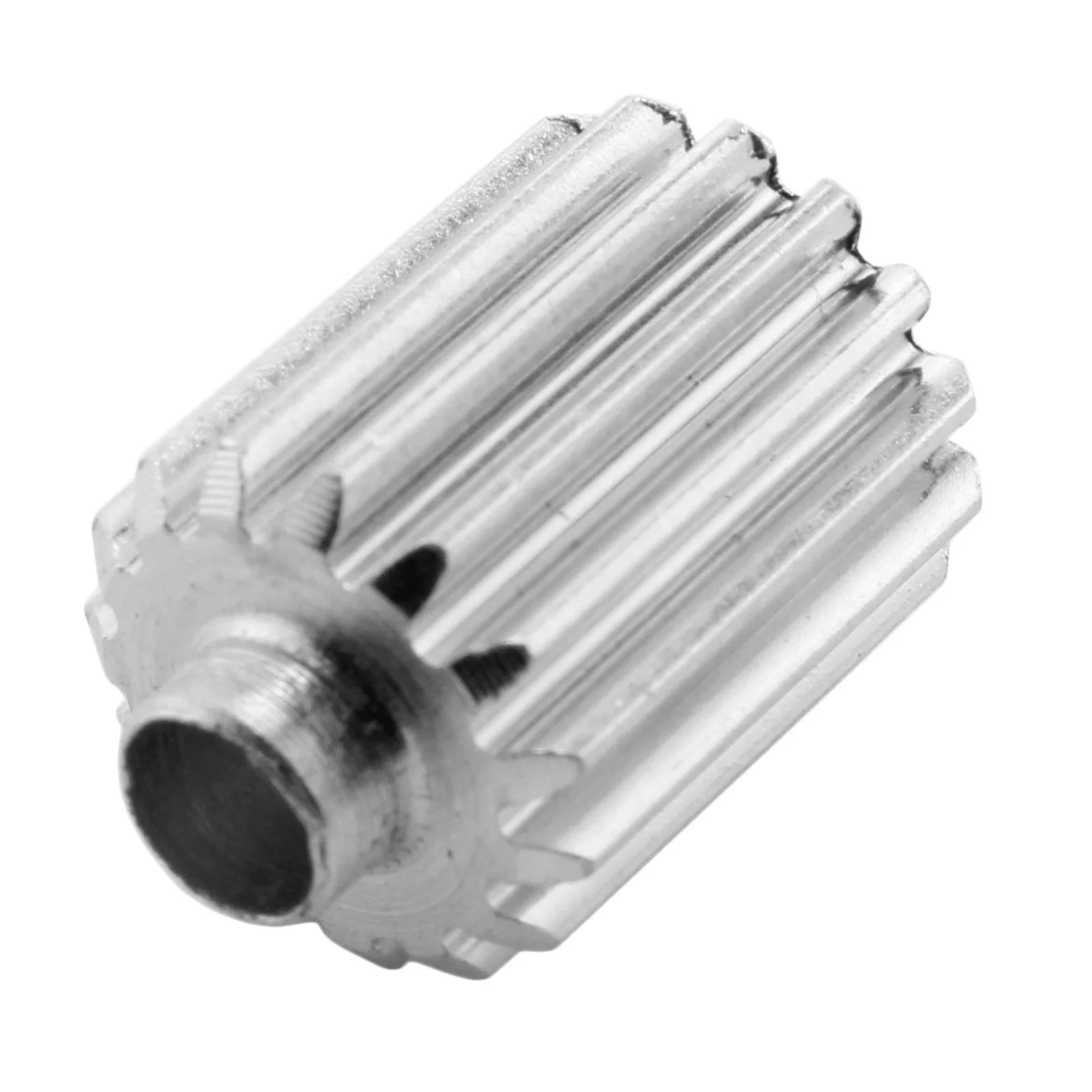

32 DP Pinion Gears - Image 6

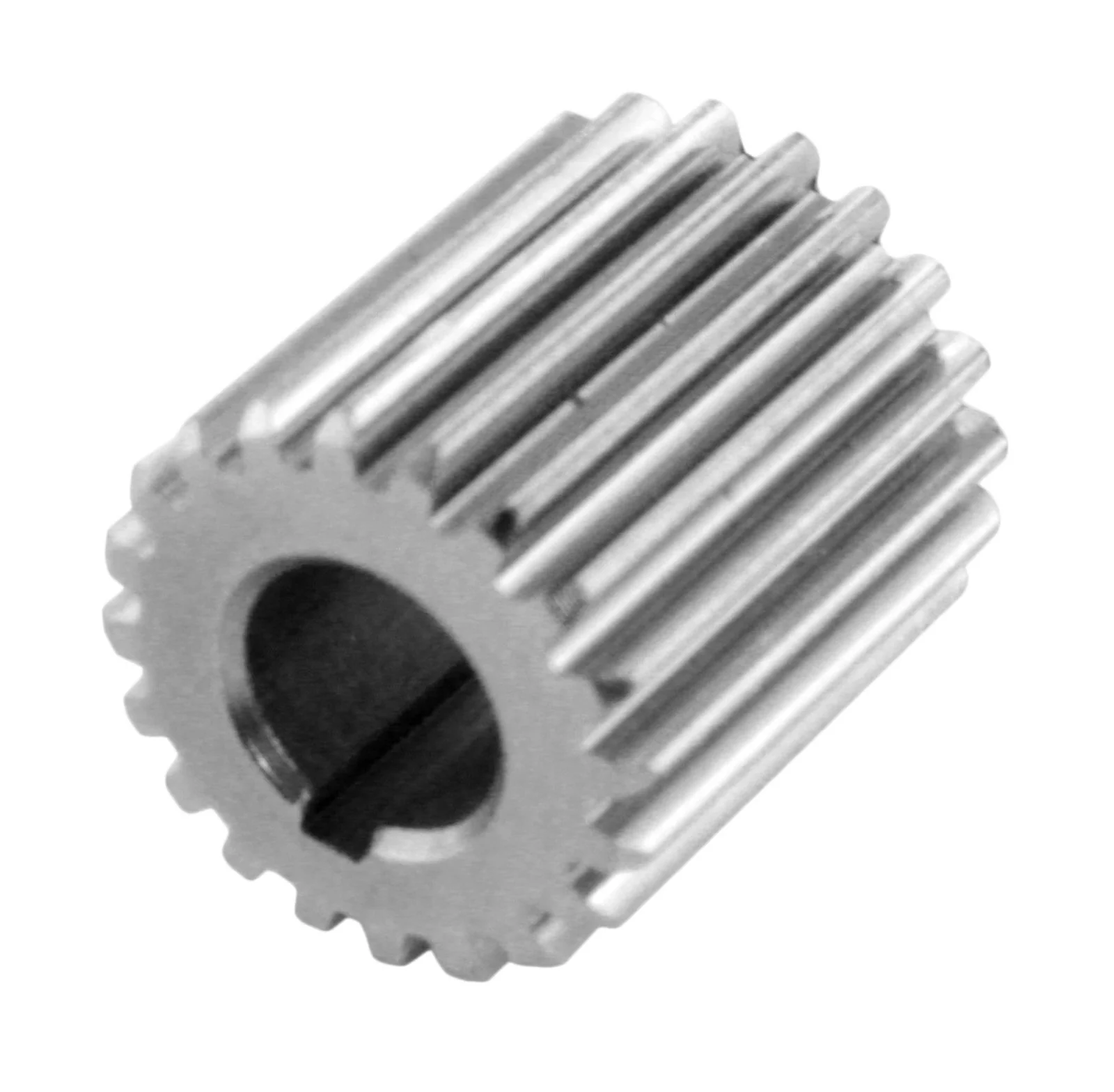

32 DP Pinion Gears - Image 7

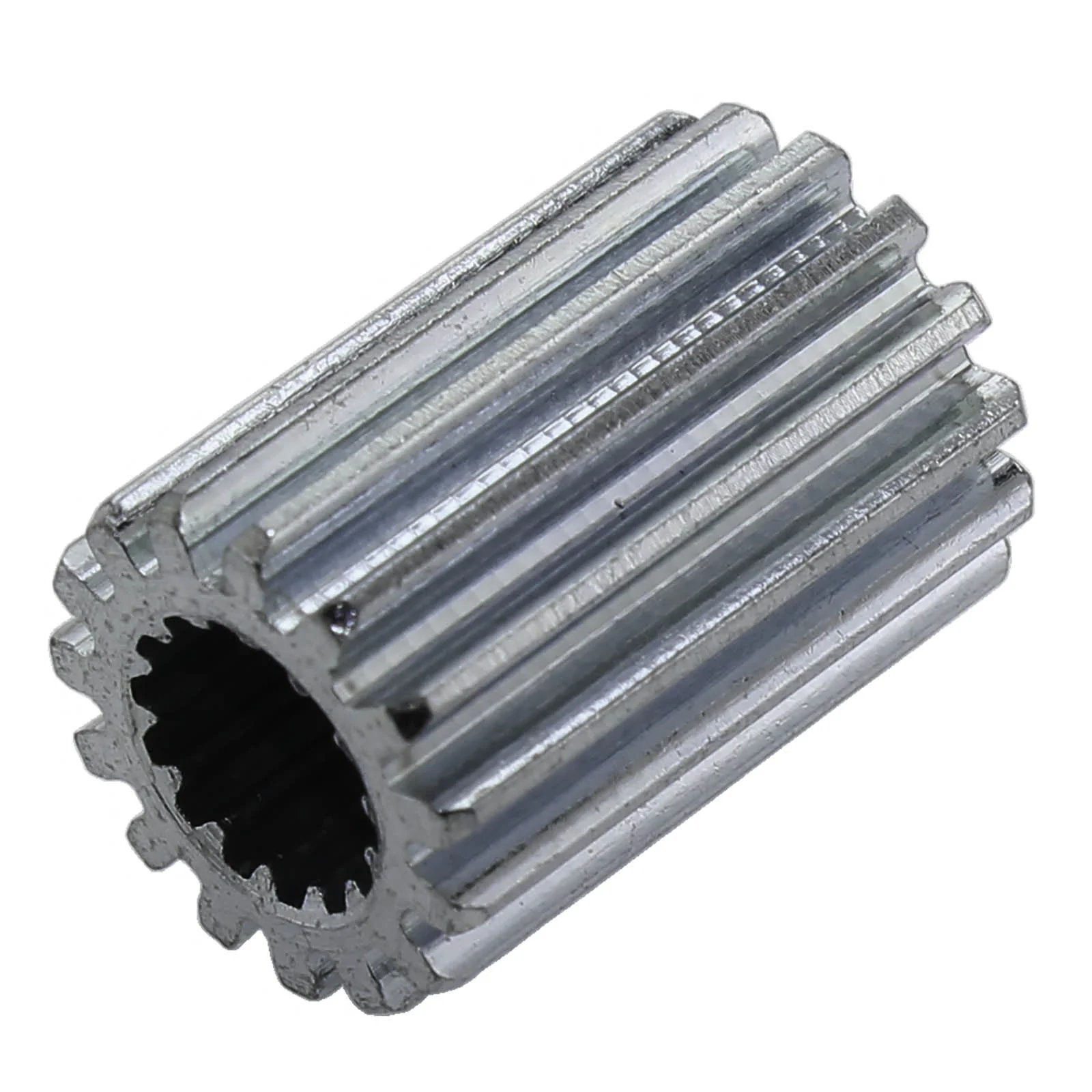

32 DP Pinion Gears - Image 8

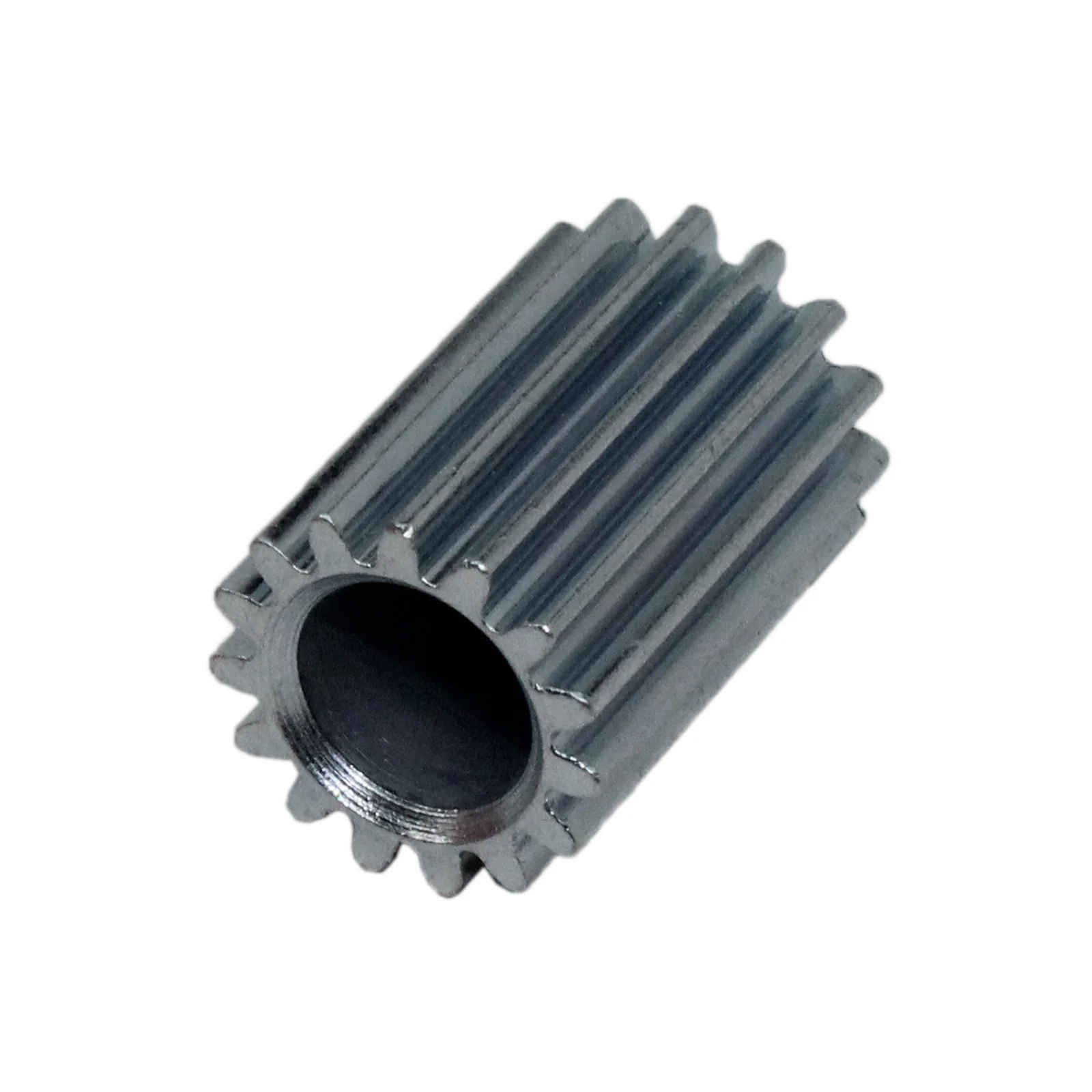

32 DP Pinion Gears - Image 9

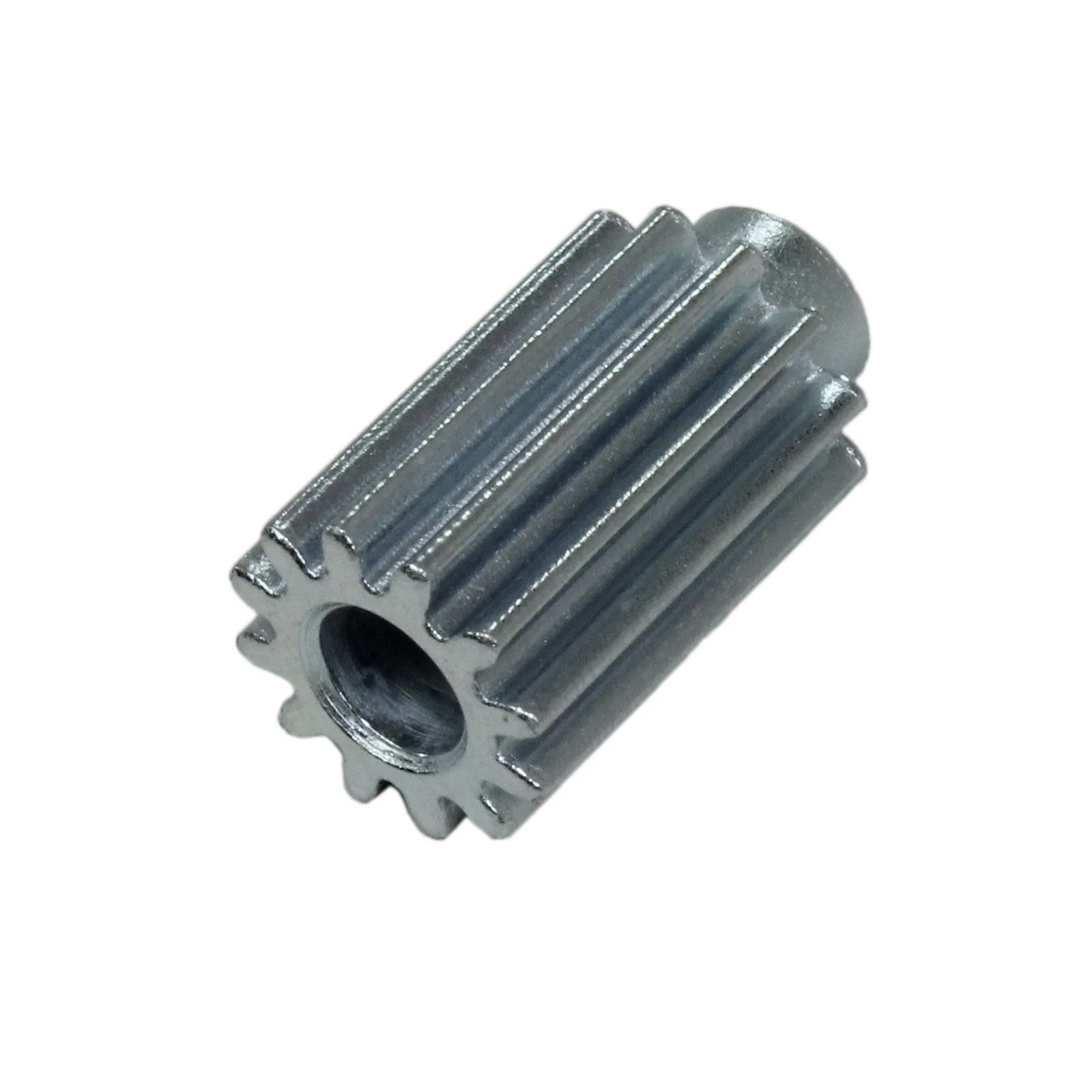

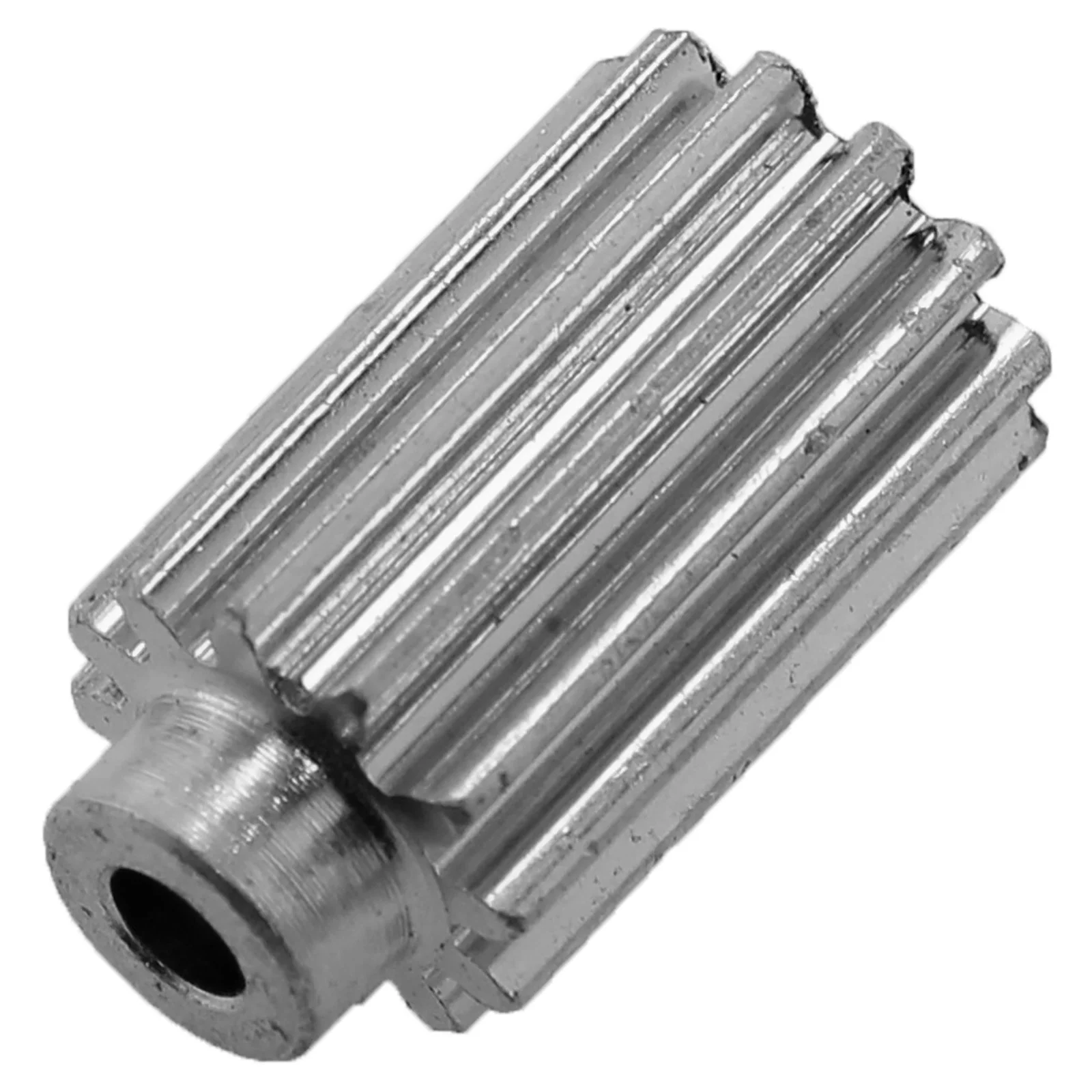

32 DP Pinion Gears - Image 10

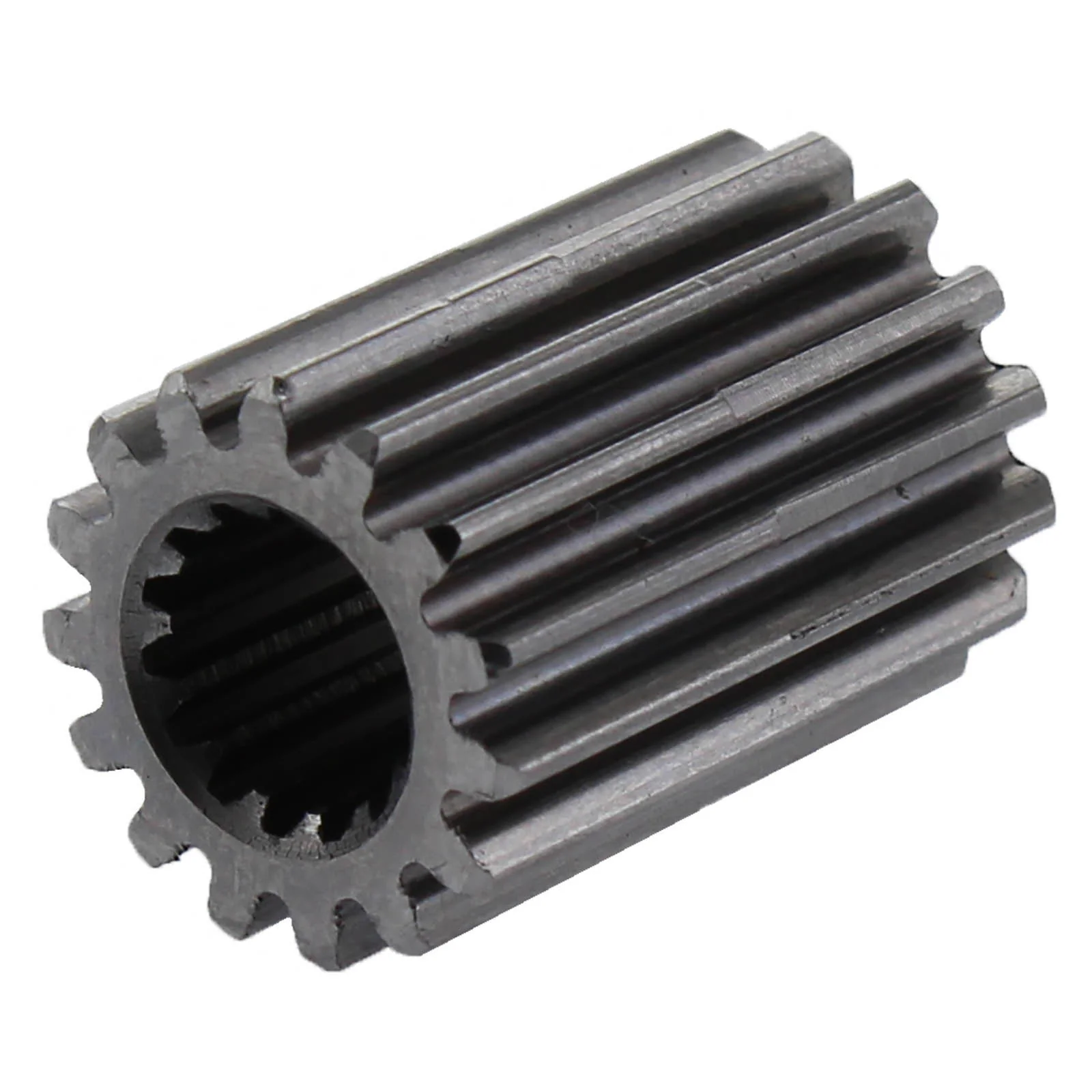

32 DP Pinion Gears - Image 11
