3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex)
HomeStore

3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex)

3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex)

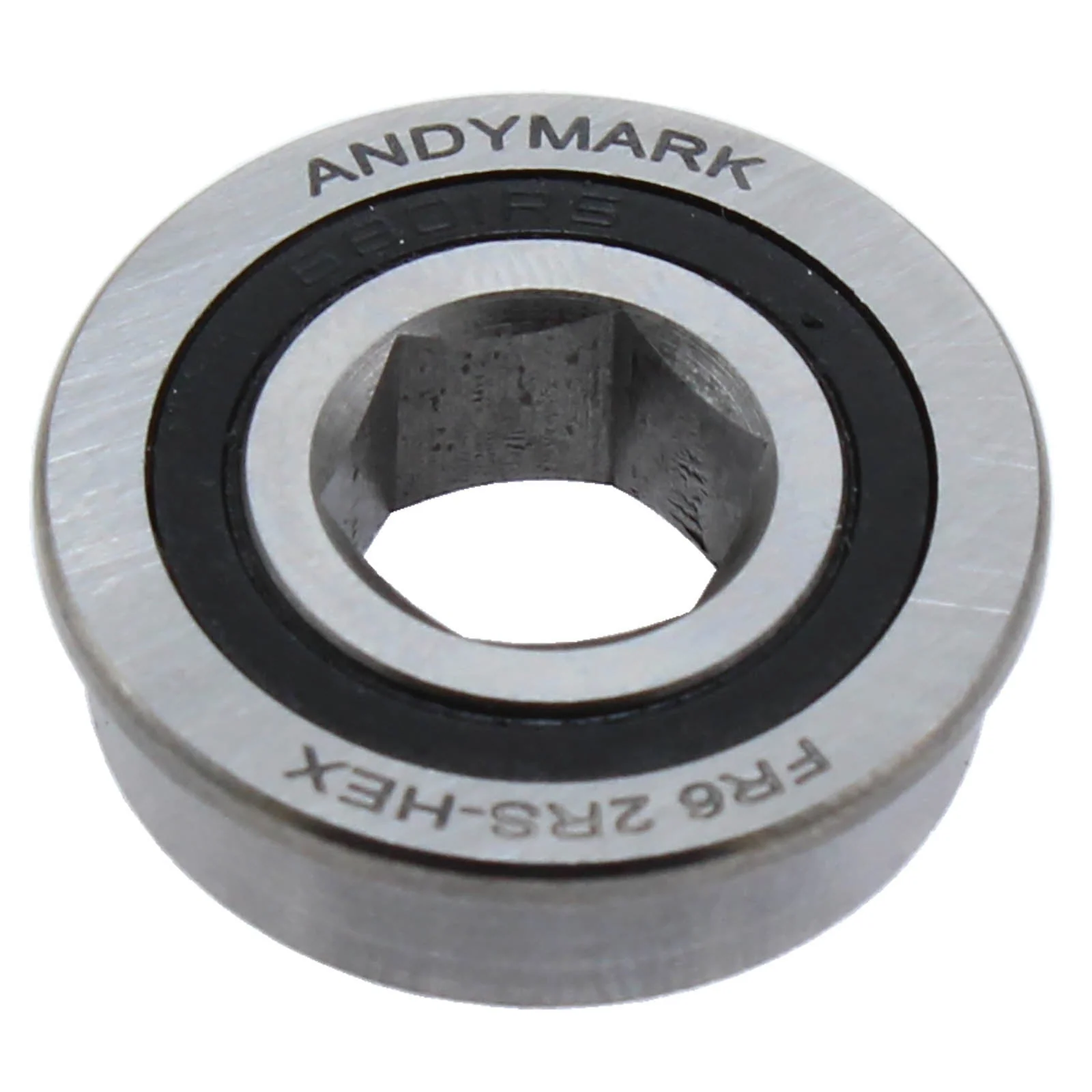

This is a sealed, flanged ball bearing that fits on a 3/8 in hex shaft.
  • Description
  • Specifications

  • Over a decade later the much-anticipated 3/8 in. hex ID 7/8 in. OD bearing is back from AndyMark, and this time it's stronger than ever!

    Unlike the previous version from 2010, this bearing has a significantly thicker inner race giving it a dynamic load rating of over 175lb. While we still don't recommend using these on an FRC drive system, they would work well anywhere else on your robot you want to use a 3/8 in. hex shaft to make your mechanisms smaller and lighter.

    This bearing is protected by a low resistance seal that prevents dirt and debris from locking it up, while letting it spin freely.

    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Dynamic Load: 855 N
    • Flange: Flanged
    • Flange Diameter: 0.975 in.
    • Flange Thickness: 0.065 in.
    • Material: Steel
    • Outside Diameter: 0.875 in.
    • Seal Type: Sealed
    • Static Load: 435 N
    • Width: 0.280 in.
$1.92

Original: $5.50

-65%
3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex)—

$5.50

$1.92

More Images

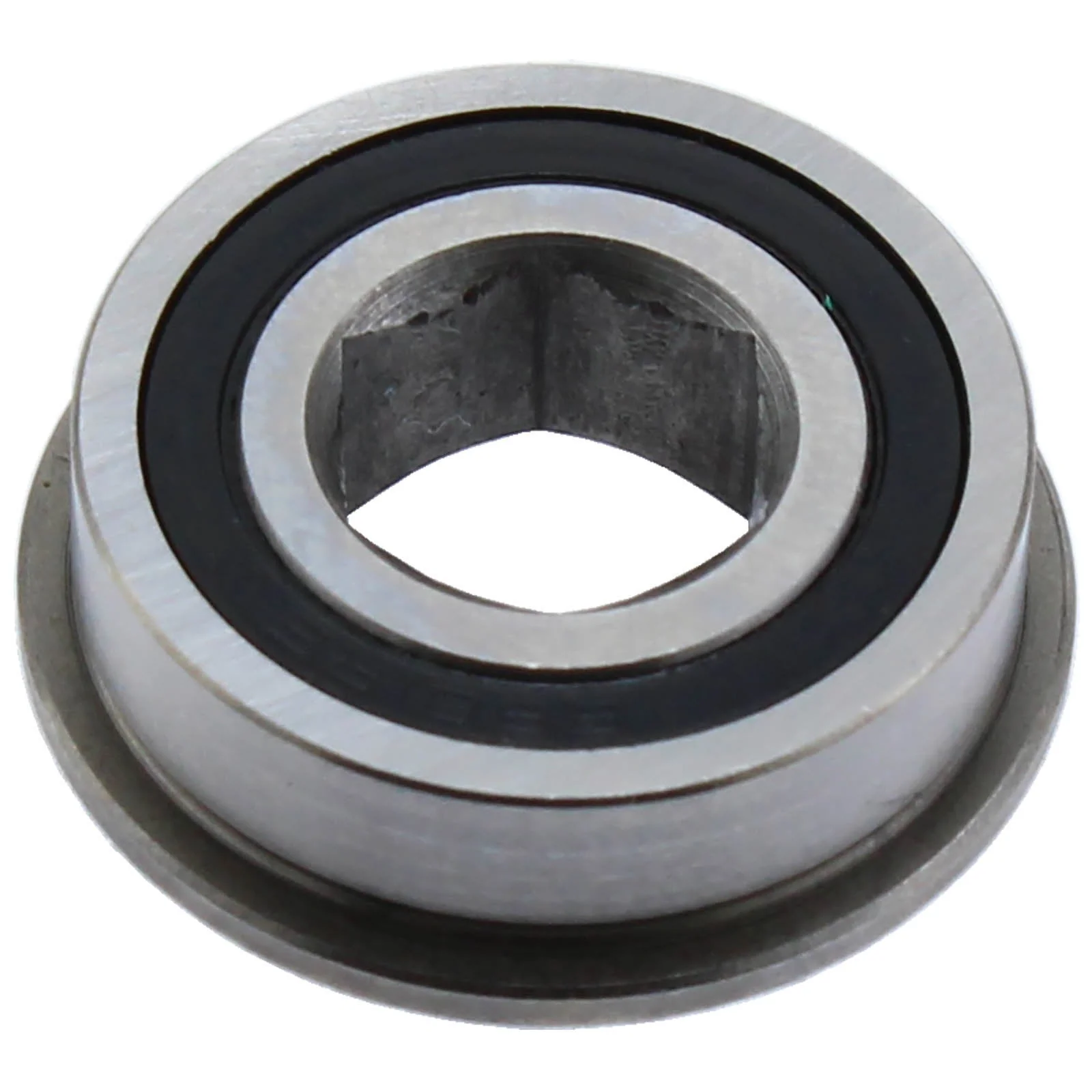

3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex) - Image 2

3/8 (0.375) in. Hex ID 7/8 (0.875) in. OD Sealed Flanged Bearing (FR62RS-Hex)

This is a sealed, flanged ball bearing that fits on a 3/8 in hex shaft.
  • Description
  • Specifications

  • Over a decade later the much-anticipated 3/8 in. hex ID 7/8 in. OD bearing is back from AndyMark, and this time it's stronger than ever!

    Unlike the previous version from 2010, this bearing has a significantly thicker inner race giving it a dynamic load rating of over 175lb. While we still don't recommend using these on an FRC drive system, they would work well anywhere else on your robot you want to use a 3/8 in. hex shaft to make your mechanisms smaller and lighter.

    This bearing is protected by a low resistance seal that prevents dirt and debris from locking it up, while letting it spin freely.

    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Dynamic Load: 855 N
    • Flange: Flanged
    • Flange Diameter: 0.975 in.
    • Flange Thickness: 0.065 in.
    • Material: Steel
    • Outside Diameter: 0.875 in.
    • Seal Type: Sealed
    • Static Load: 435 N
    • Width: 0.280 in.
