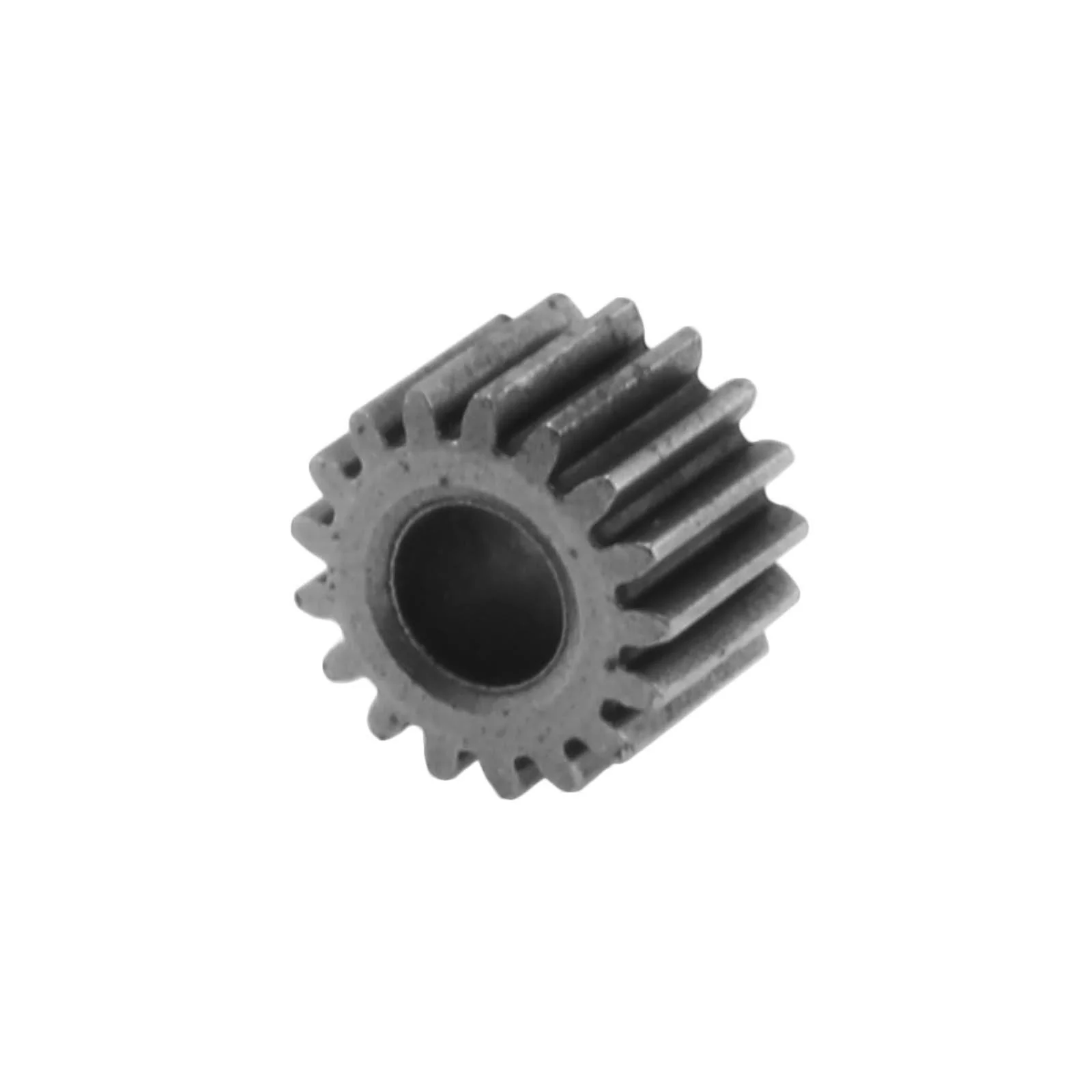

17 Tooth 0.6 Module 5 mm Round Bore Steel Gear
HomeStore

17 Tooth 0.6 Module 5 mm Round Bore Steel Gear

17 Tooth 0.6 Module 5 mm Round Bore Steel Gear

This pinion gear is designed to be pressed onto motors with a 5 mm output shaft such as most 700 class motors.
  • Description
  • This pinion interfaces with our PG71 and PG188 gearboxes.
    • Bore: 5 mm Round
    • Material: Steel
    • Module: 0.6
    • Overall Thickness: 0.315 in.
    • Pitch Diameter: 10.2 mm
    • Pressure Angle: 20°
    • Teeth: 17
    • Weight: 0.1 lbs.
$3.00
17 Tooth 0.6 Module 5 mm Round Bore Steel Gear—
$3.00

17 Tooth 0.6 Module 5 mm Round Bore Steel Gear

This pinion gear is designed to be pressed onto motors with a 5 mm output shaft such as most 700 class motors.
  • Description
  • This pinion interfaces with our PG71 and PG188 gearboxes.
    • Bore: 5 mm Round
    • Material: Steel
    • Module: 0.6
    • Overall Thickness: 0.315 in.
    • Pitch Diameter: 10.2 mm
    • Pressure Angle: 20°
    • Teeth: 17
    • Weight: 0.1 lbs.

Product Information

Shipping & Returns

Description

This pinion gear is designed to be pressed onto motors with a 5 mm output shaft such as most 700 class motors.
  • Description
  • This pinion interfaces with our PG71 and PG188 gearboxes.
    • Bore: 5 mm Round
    • Material: Steel
    • Module: 0.6
    • Overall Thickness: 0.315 in.
    • Pitch Diameter: 10.2 mm
    • Pressure Angle: 20°
    • Teeth: 17
    • Weight: 0.1 lbs.
