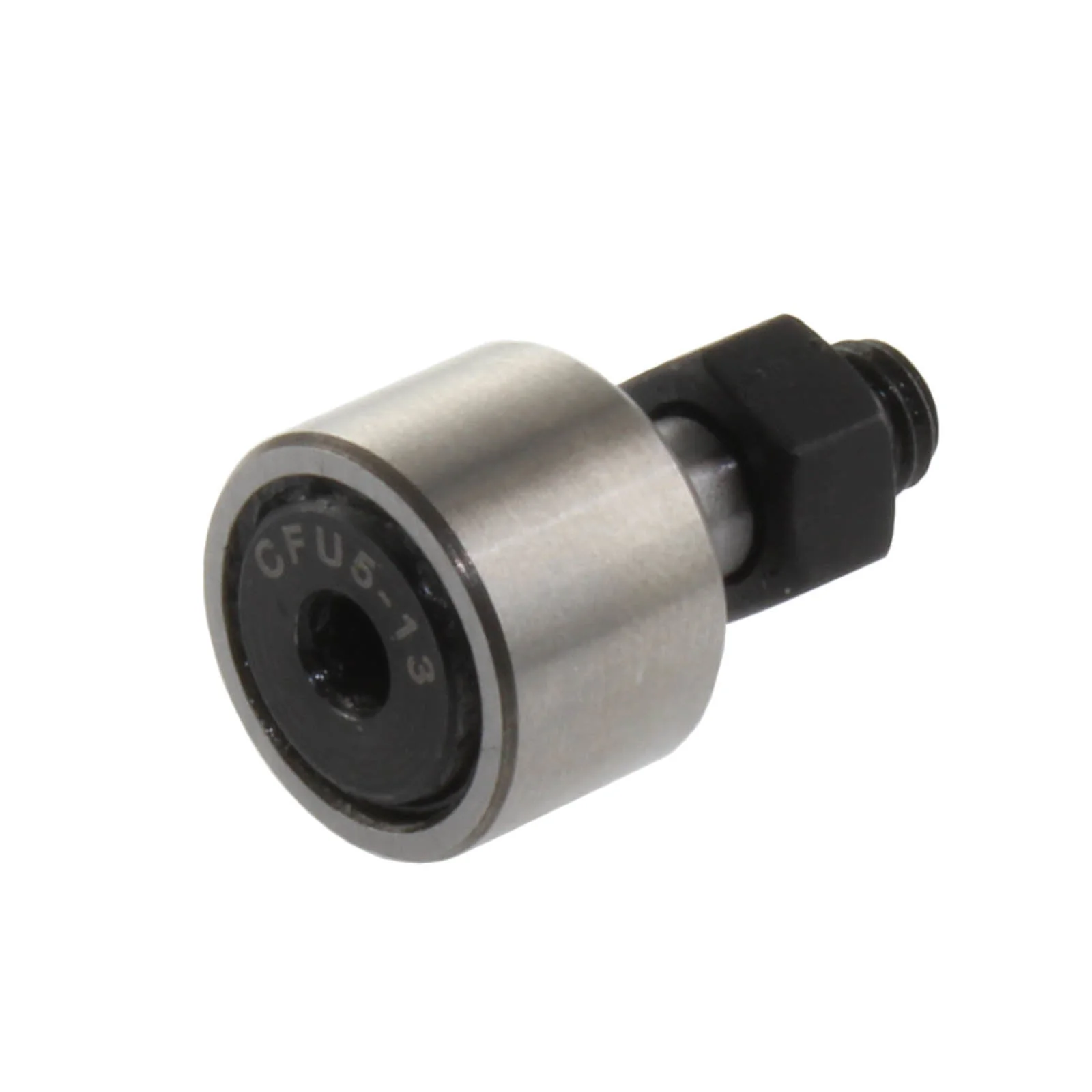

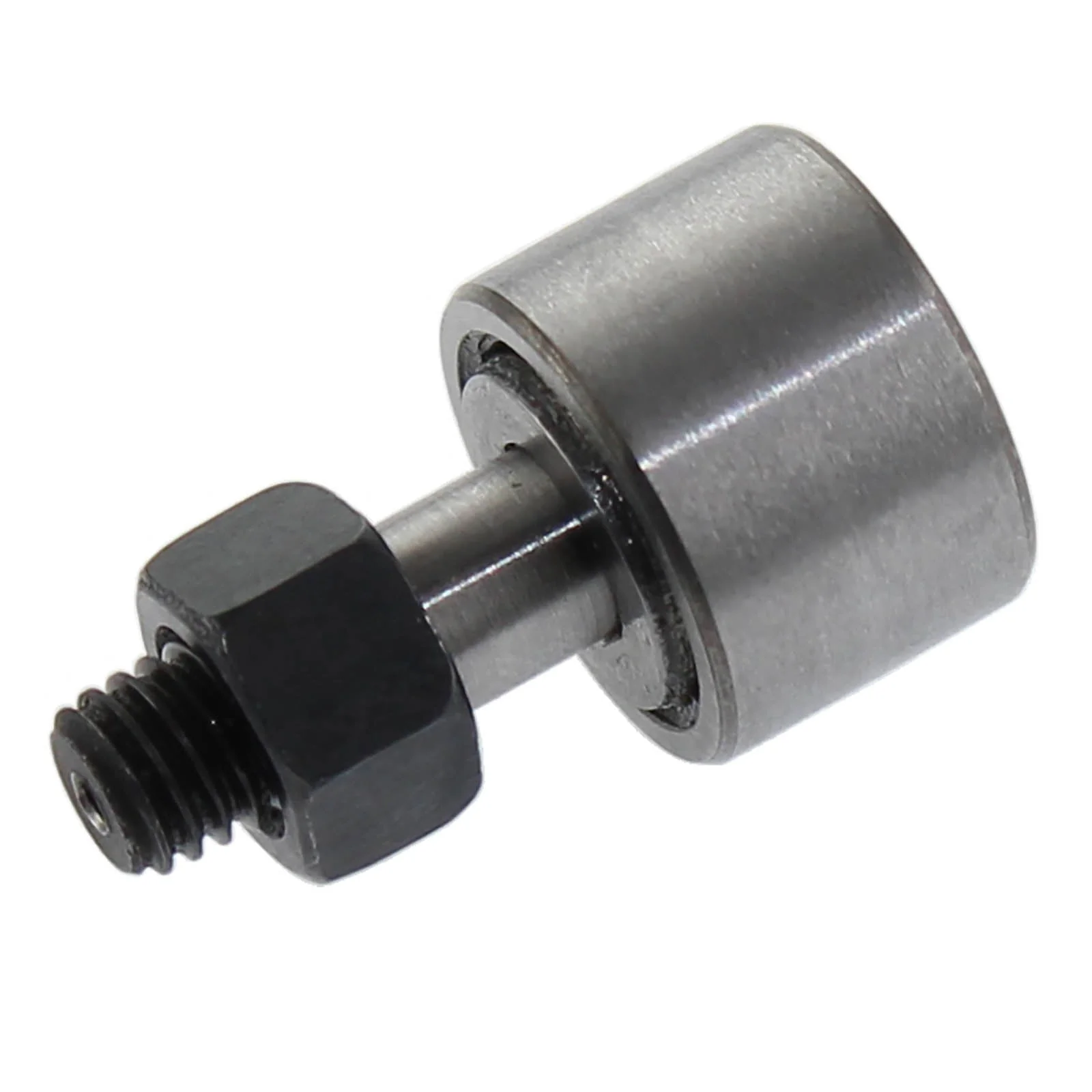

13 mm Cam Follower
Also known as threaded track rollers, these studded bearings support loads while keeping components positioned.
- Description
- Specifications
- Unlike a bearing on a bolt, the stud is a part of the body giving it a higher load capacity. This cam follower has crowned edges that help center surfaces that roll past. Thread this cam follower directly into a component or through-hole mount with the included nut. These are useful in lift systems like two-stage elevators.
-
- Flange: Unflanged
- Length (Overall): 23 mm
- Length (Roller): 9 mm
- Length (Shoulder): 13 mm
- Material: Steel
- Maximum Speed: 29000 RPM
- Outside Diameter: 0.512 in. [13 mm]
- Radial Dynamic Load Rating: 700 lbf [3110 N]
- Radial Static Load Rating: 600 lbf [2660 N]
- Thread: M5-0.8
- Width: 9 mm
$16.00
