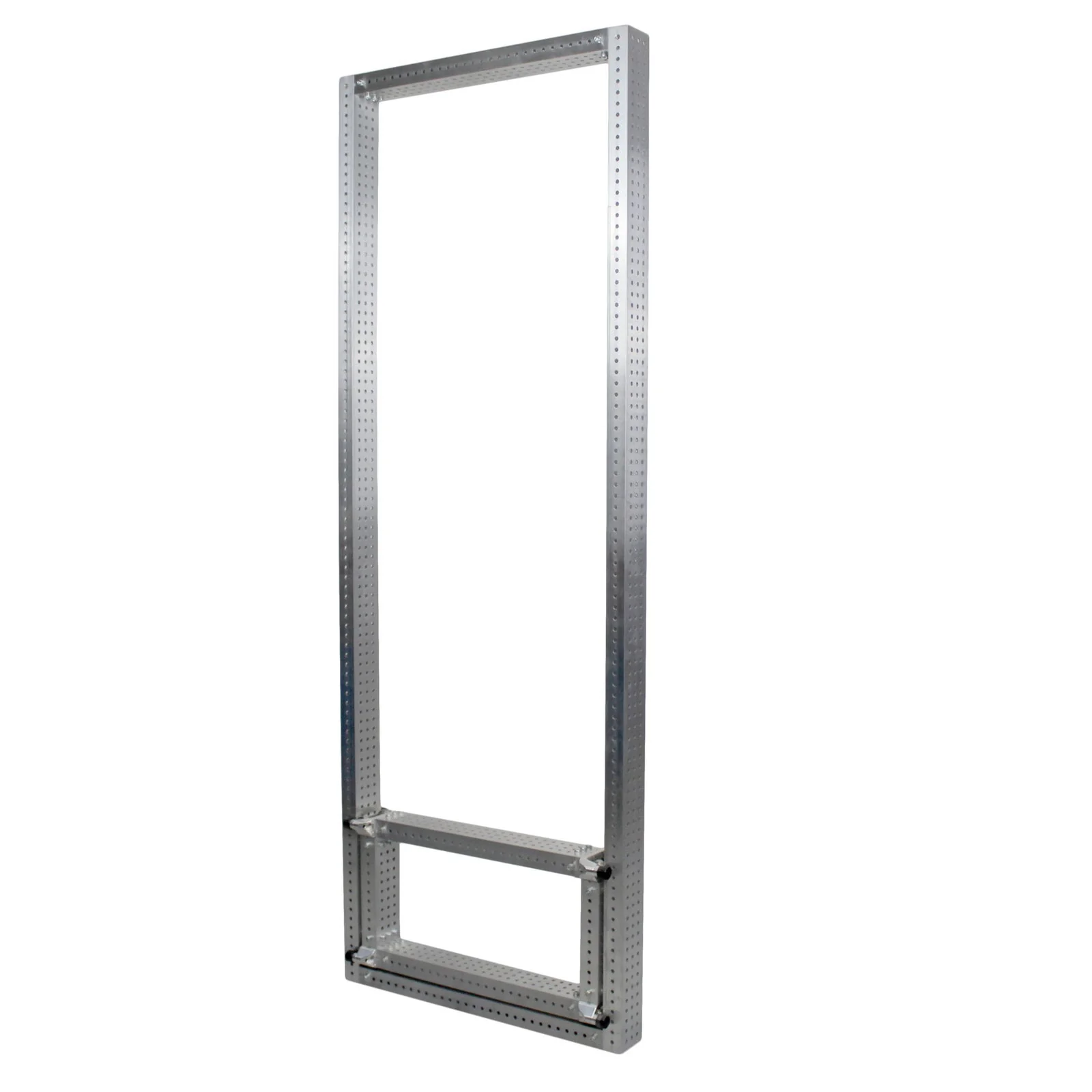

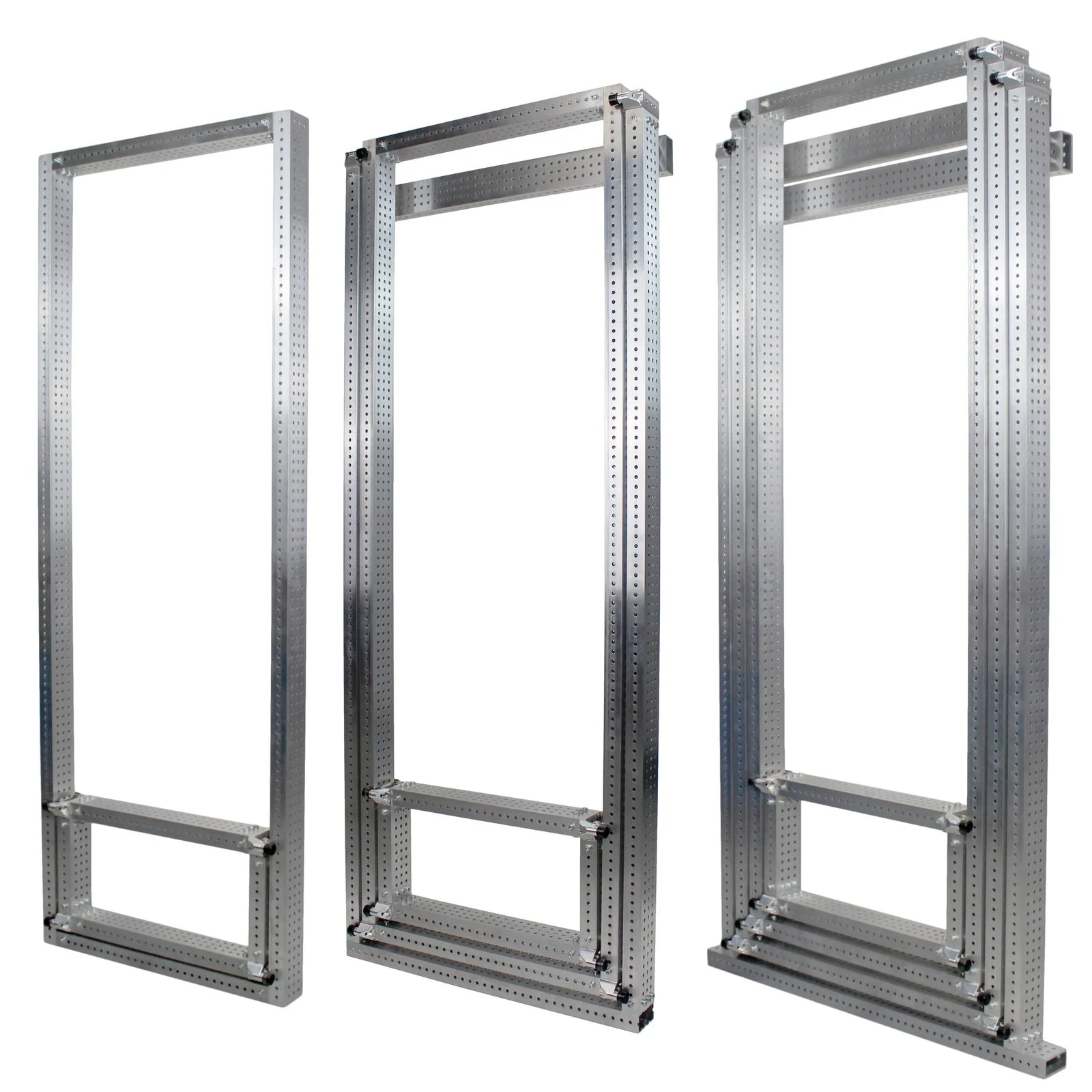

SDS Billet Bearing Blocks are the core of an incredibly efficient and smooth elevator mechanism. Select the desired number of stages, tube thickness, and extrusion inclusion to create your complete elevator mechanism.

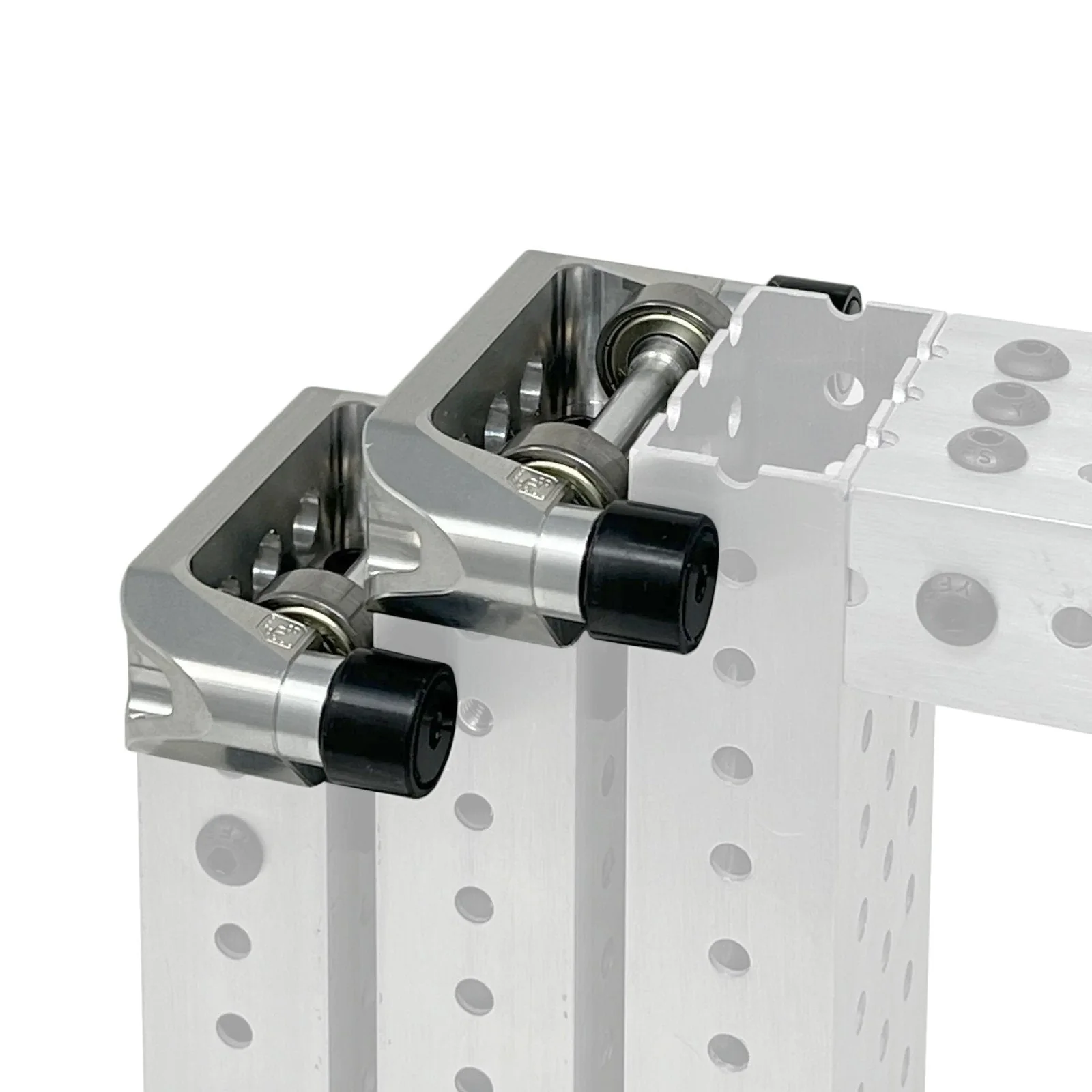

SDS Billet Elevator Bearing Blocks are designed to integrate with included tube plugs and commonly available pre-drilled or punched 2x1 tubing. Attach 1 or 2 tube plugs to a bearing block depending on where it is used on an elevator. These allow the connection between the box tube and the Bearing Blocks to be primarily inside of the box tube, resulting in an incredibly low profile.

These premium bearings blocks utilize cam followers for the primary load direction. Cam followers are designed for the line contact loading present in FRC elevators and have a higher load rating when compared to similarly sized ball bearings. Cam followers also have a much larger face width than typical bearings, allowing for more overlap to prevent elevator stages from becoming dislodged.

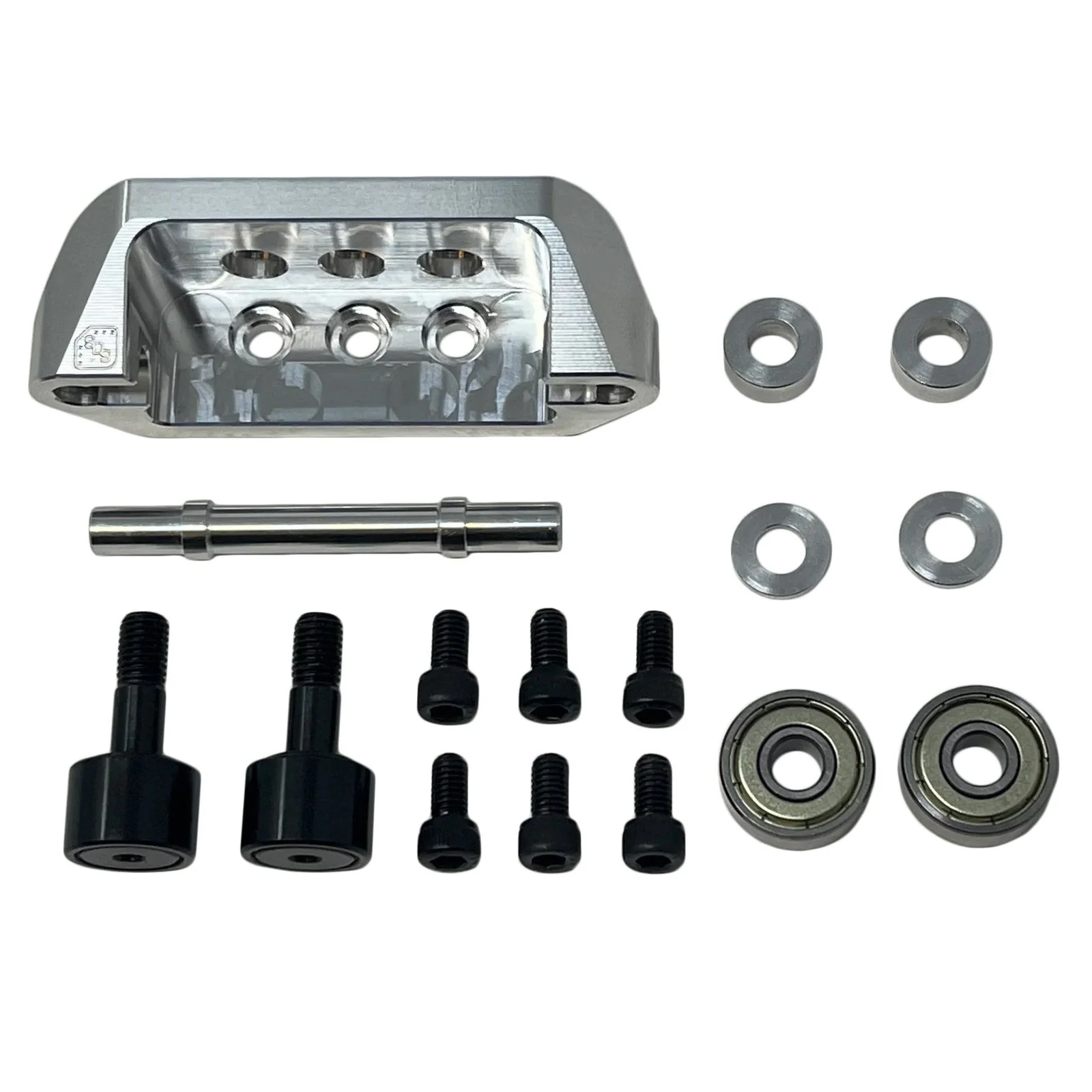

SDS bearing blocks come with 2 sets of spacers for the cam followers. Users can decide if they would like to use the long spacers for maximum bearing overlap, or the short spacers if needed for screw head clearance.

Included Items:
SDS Elevator Kit, One Stage, With 1/8 in. Tube Plugs (am-5567):
- 8 - 2x1 Tube Plugs (am-4762)
- 4 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, One Stage, With 1/8 in. Tube Plugs, With Extrusion (am-5568):
- 75 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 8 - 2x1 Tube Plugs (am-4762)
- 4 - 47 in. 2 x 1 x 0.125 Wall Pre-Drilled Square Tube (am-5180)
- 4 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, One Stage, With 1/16 in. Tube Plugs (am-5569):
- 8 - 2x1 Tube Plugs (am-5456)
- 4 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, One Stage, With 1/16 in. Tube Plugs, With Extrusion (am-5570):
- 4 - SDS Elevator Kit, Single Corner (am-5474)
- 75 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 4 - 47 in. 2 x 1 x 0.063 Wall Pre-Drilled Square Tube (am-5179)
- 8 - 2x1 Tube Plugs (am-5456)
SDS Elevator Kit, Two Stage, With 1/8 in. Tube Plugs (am-5571):
- 16 - 2x1 Tube Plug (am-4762)
- 4 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Two Stage, With 1/8 in. Tube Plugs, With Extrusion (am-5572):
- 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
- 150 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 16 - 2x1 Tube Plug (am-4762)
- 7 - 47 in. 2 x 1 x 0.125 Wall Pre-Drilled Square Tube (am-5180)
- 8 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Two Stage, With 1/16 in. Tube Plugs (am-5573):
- 16 - 2x1 Tube Plug (am-5456)
- 8 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Two Stage, With 1/16 in. Tube Plugs, With Extrusion (am-5574):
- 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
- 150 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 7 - 47 in. 2 x 1 x 0.063 Wall Pre-Drilled Square Tube (am-5179)
- 16 - 2x1 Tube Plugs (am-5456)
- 8 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Three Stage, With 1/8 in. Tube Plugs (am-5575):
- 24 - 2x1 Tube Plug (am-4762)
- 12 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Three Stage, With 1/8 in. Tube Plugs, With Extrusion (am-5576):
- 8 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
- 225 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 24 - 2x1 Tube Plug (am-4762)
- 10 - 47 in. 2 x 1 x 0.125 Wall Pre-Drilled Square Tube (am-5180)
- 12 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Three Stage, With 1/16 in. Tube Plugs (am-5577):
- 24 - 2x1 Tube Plug (am-5456)
- 12 - SDS Elevator Kit, Single Corner (am-5474)
SDS Elevator Kit, Three Stage, With 1/16 in. Tube Plugs, With Extrusion (am-5578):
- 8 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
- 225 - 10-32 x 0.375 in. Socket Head Cap Screw with Nylon Patch (am-1745)
- 10 - 47 in. 2 x 1 x 0.063 Wall Pre-Drilled Square Tube (am-5179)
- 24 - 2x1 Tube Plugs (am-5456)
- 12 - SDS Elevator Kit, Single Corner (am-5474)
---------------------------------------------------------------------------------------------------------
