Designed with accessibility in mind, Robits is the AndyMark building system for FIRST Tech Challenge and RECF teams.

Description
What's in the Box?
Documentation

Curriculum Now Available! Six lessons of curriculum using the Robits Core Kit are now available to download.

AndyMark has developed a StarterBot Base for the 2026-2027 FIRST Tech Challenge game that is built entirely from the Robits Core Kit. This robot serves to be an easy way to get started in this year's FTC challenge by giving users a base point that they can learn and build off of. See this page for more in-depth information and instructions on how to build it.

Robits is a new AndyMark building system for FIRST Tech Challenge teams, designed with accessibility in mind. Robits encourages rapid iteration and promotes development of critical thinking and problem solving.

The Robits system is designed to reduce complexity and enable robust builds. Parts align to a common 1/2 in. grid simplifying construction and allowing alignment of both structure and motion components. Optimized resolution of components simplifies the system while allowing teams to always have the parts they need to complete a build.

Robits is an excellent cross-program system utilizing many common features and components FIRST Robotics Competition teams have grown to prefer.

To learn more, watch this video: Introducing Robits with Allison Kneisler

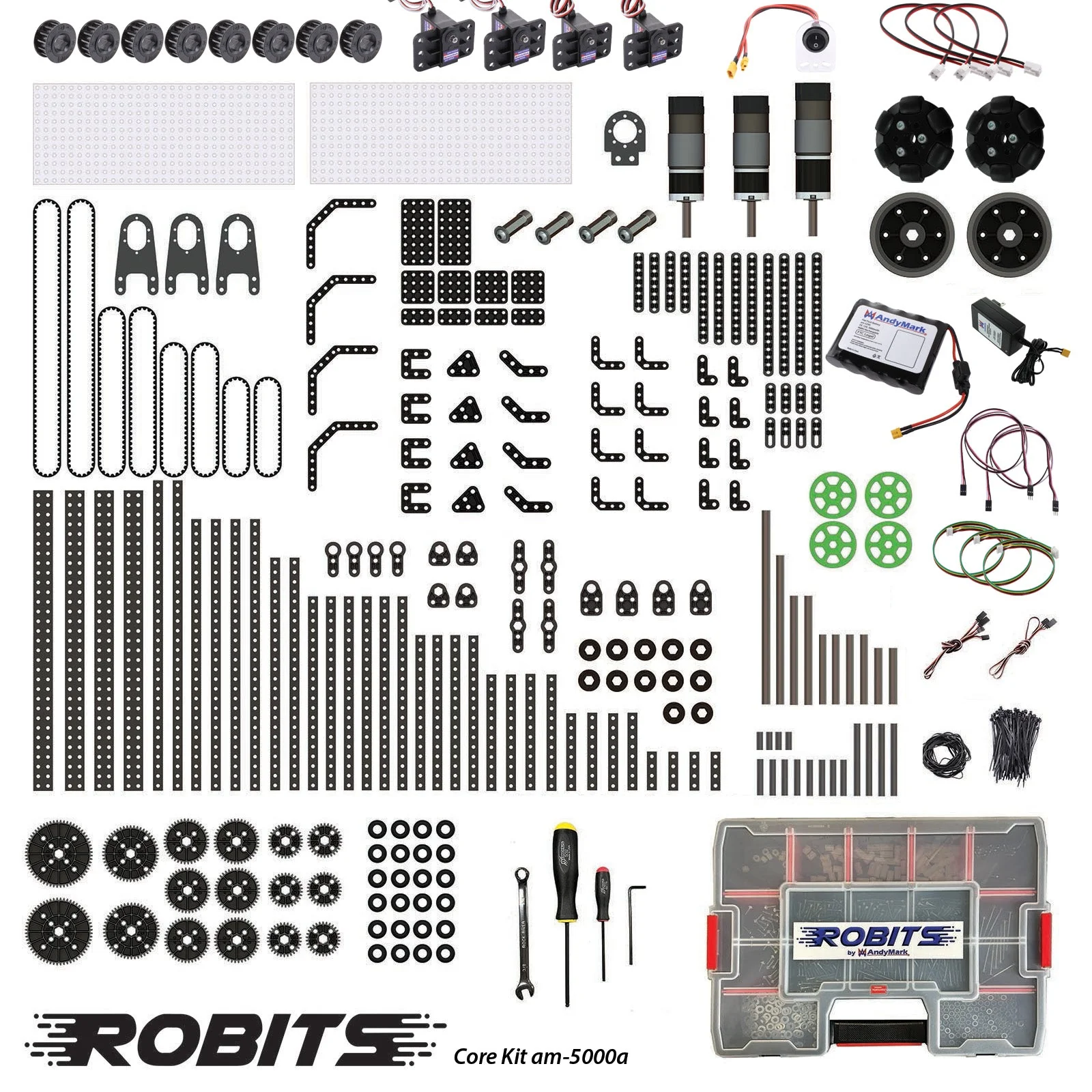

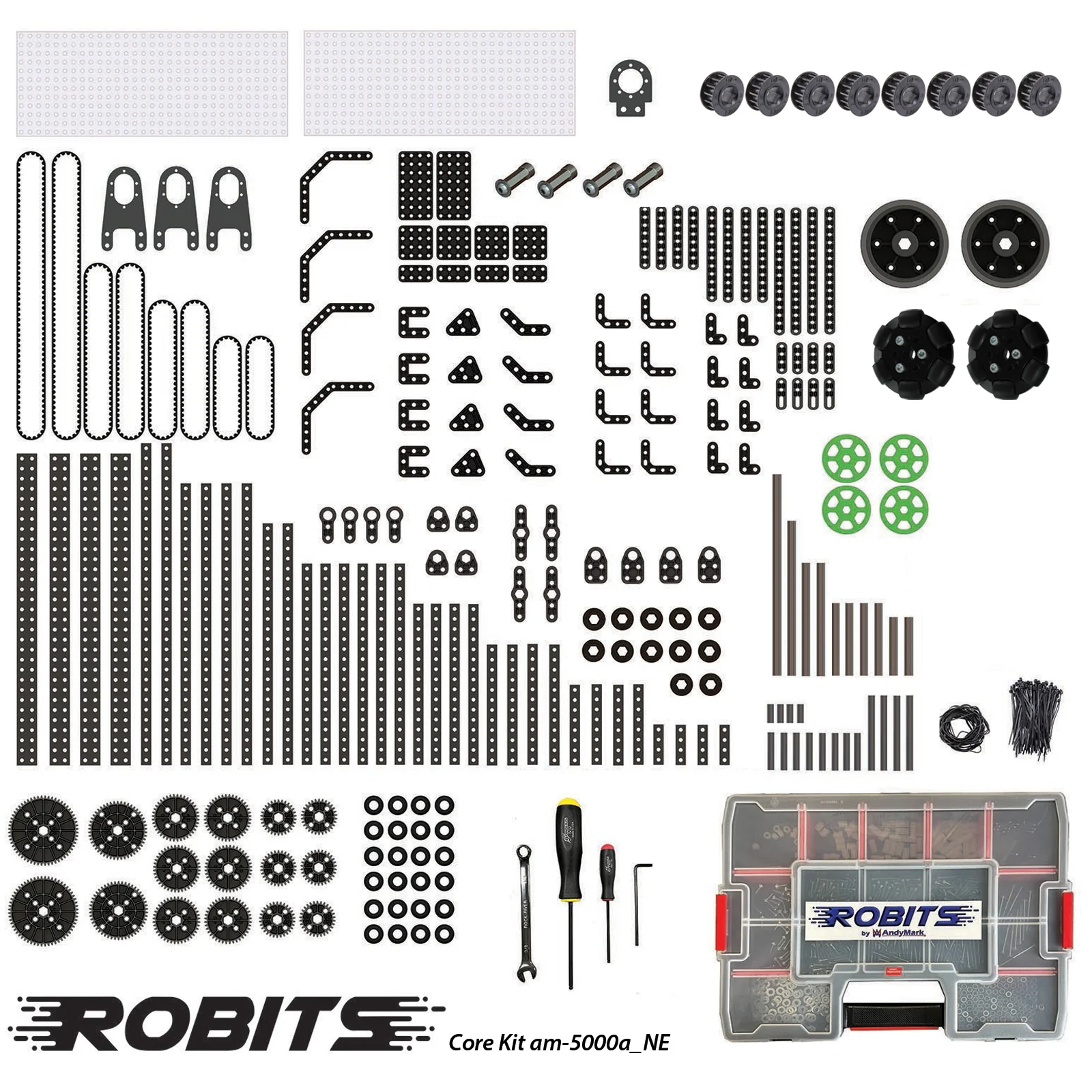

Electronics (not included in am-5000a_NE):
- 2 - Programmable Torque Servo (am-4954a)
- 2 - Programmable Speed Servo (am-4955a)
- 2 - 24 in. PWM Cable (am-0694a)
- 2 - 36 in. PWM Cable (am-0695b)
- 3 - 12 inch Motor Encoder Cable (am-3926b-1200)
- 1 - FTC Power Switch with bracket (am-4969)
- 1 - FTC Flat Pack Battery (am-5290)
- 1 - FTC Battery Charger (am-5473)
- 2 - NeveRest Hex 19.2 (am-5442)
- 1 - NeveRest Hex 50.9 (am-5443)
- 3 - 12 inch Motor Power Wire (am-5198-1200)
Structure:
- 2 - 15.5×6×1/32 Perforated PC (am-4964)
- 3 - Robits 80-100T Motor Mount (am-5017)
- 1 - Robits Motor Mount (Side 2 Hole) (am-5012)
- 4 - Robits End Bushing Carrier (am-5014)
- 4 - Robits Side Bushing Carrier (am-5013)
- 4 - Robits Side Shaft Carrier (am-5015)
- 4 - Robits Double End Shaft Carrier (am-5016)
- 4 - 10-32 Female Threaded 1 in. Long 0.375 in. Round Standoff (am-1701)
- 8 - 10-32 Female Threaded 2 in. Long 0.375 in. Round Standoff (am-1702)
- 4 - 10-32 Female Threaded 4 in. Long 0.375 in. Round Standoff (am-1704)
- 4 - Robits 0.5×0.5×2.0 Tube (am-5001-0200)
- 4 - Robits 0.5×0.5×4.0 Tube (am-5001-0400)
- 4 - Robits 0.5×0.5×6.0 Tube (am-5001-0600)
- 4 - Robits 0.5×0.5×8.0 Tube (am-5001-0800)
- 6 - Robits 0.5×0.5×10.0 Tube (am-5001-1000)
- 4 - Robits 0.5×0.5×12.0 Tube (am-5001-1200)
- 2 - Robits 0.5×0.5×14.0 Tube (am-5001-1400)
- 2 - Robits 0.5×0.5×16.0 Tube (am-5001-1600)
- 4 - Robits 1.0×1.0×15.5 Tube (am-5002-1550)
- 4 - Robits Angle Gusset (45°) (am-5010_045)
- 4 - Robits Angle Gusset (135°) (am-5010_135)
- 4 - Robits Slotted Beam (am-5011_slot)
- 4 - Robits 1×4 Beam (am-5011_1x4)
- 4 - Robits 1×8 Beam (am-5011_1x8)
- 4 - Robits 1×12 Beam (am-5011_1x12)
- 4 - Robits 1×16 Beam (am-5011_1x16)
- 8 - Robits 2×3 L Gusset (am-5004_2x3)
- 8 - Robits 3×3 Corner Gusset (am-5005_3x3)
- 4 - Robits 5×5 Corner Gusset (am-5005_5x5)
- 4 - Robits 2×4 Plate (am-5006_2x4)
- 4 - Robits 4×4 Plate (am-5006_4x4)
- 2 - Robits 4×8 Plate (am-5006_4x8)
- 4 - Robits 3x3 U Gusset (am-5008_3x3)
Motion:
- 16 - 14 Tooth 0.375IN Hex Bore HTD Pulley Half (am-4960_half)
- 24 - Robits Motion Bushing for 375IN Hex (am-5021)
- 6 - 30 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_30)
- 6 - 40 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_40)
- 2 - 50 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_50)
- 2 - 60 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_60)
- 2 - 225-5M-9 Belt (45 Tooth) (am-5209_45T)
- 2 - 300-5M-09 Belt (60 Tooth) (am-5209_60T)
- 2 - 375-5M-09 Belt (75 Tooth) (am-5209_75T)
- 2 - 605-5M-09 Belt (121 Tooth) (am-5209_121T)
- 2 - Robits 0.375 in. Hex Shaft 3 in. Long (am-5003-0300)
- 4 - Robits 0.375 in. Hex Shaft 4 in. Long (am-5003-0400)
- 2 - Robits 0.375 in. Hex Shaft 6 in. Long (am-5003-0600)
- 1 - Robits 0.375 in. Hex Shaft 8 in. Long (am-5003-0800)
- 1 - Robits 0.375 in. Hex Shaft 10 in. Long (am-5003-1000)
- 4 - 5 mm Hex to 375IN Hex Shaft Adapter (am-4957-0100)
- 4 - 2 in. Compliant Wheels (Green) (am-3571_green)
- 2 - 3 in Omni Wheel (Single) (am-4967a)
- 2 - 3 in. Stealth Wheel (Gray) (am-4718_gray)
Hardware:
- 24 - Spacer, 0.375 OD x 0.194 ID x 0.25 Long Nylon (am-1700)
- 24 - Spacer, 0.375 OD x 0.194 ID x 0.50 Long Nylon (am-1697)
- 24 - Spacer, 0.375 OD x 0.194 ID x 0.75 Long Nylon (am-4107)
- 24 - Spacer, 0.375 OD x 0.194 ID x 1.00 Long Nylon (am-1696)
- 24 - Spacer, 0.430 ID x 0.500 OD x 0.250 Long Aluminum (am-1698)
- 24 - Spacer, 0.430 ID x 0.500 OD x 0.500 Long Aluminum (am-1699)
- 48 - Screw, SHCS, 10-32 x 0500 (am-1002)
- 48 - Screw, SHCS, 10-32 x 0750 (am-1047)
- 48 - Screw, SHCS, 10-32 x 1000 (am-1056)
- 48 - Screw, SHCS, 10-32 x 1250 (am-1041)
- 48 - Screw, SHCS, 10-32 x 1500 (am-1014)
- 24 - Screw, SHCS, 10-32 x 1750 (am-1048)
- 24 - Screw, SHCS, 10-32 x 2000 (am-1049)
- 12 - Screw, SHCS, 10-32 x 2250 (am-1156)
- 100 - 10-32 Nylock Jam Nut (am-1063)
- 100 - #10 Steel Washer (am-1026)
- 16 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
- 100 - Cable Ties 4 in. (am-1589)
- 50 - #33 Rubber Bands (am-5024_black)
- 1 - Robits Ruler (am-5025)
- 1 - Organizer Tote with Removable Dividers (am-4972)
Tools:
- 1 - Hex Driver, Ball End 5/32 in. with Handle (am-2751)
- 1 - Hex Driver, Ball End 2.5 mm with Handle (am-3724)
- 1 - Allen Wrench, 2.5 mm Hex L-Shaped (am-1288)
- 1 - 3/8 Combination Wrench (am-4961)
